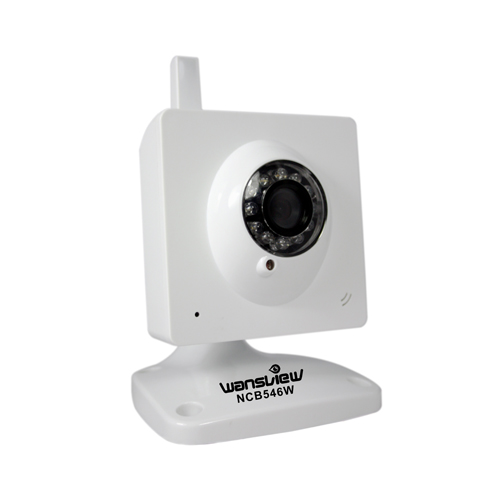

WANSVIEW NCB546W

Model:   NCB546W

Support video control
Motion detection
External alarm(sends information to alarm the server by Email, FTP)
Manufacturers provide free DDNS, and has been written into equipment
12 infrared lamps, 5 meters effectively
Automatically control through the

Model

NCB546W

Hardware performance

Product type

IP camera

Operation system

Embedded operating system

Special function

Web environment

Web protocol

IP、TCP、UDP、HTTP、SMTP、FTP、DHCP、DDNS、UPNP、NTP、PPPOE

LAN port

10Base-T/100Base-TX(RJ-45)

Wifi

WIFI，802.11 b/g/n

Image performance

Resolution

VGA、QVGA、QQVGA

Compression mode

MJPEG

Max frame rate

30fps

Other parameters

Lens

3.6mm Infrared

Min. illumination

0 lux

Electronic shutter

1/50s(1/60s)-1/100,000 s

SNR

>48db

Safety performance

Three levels of user rights

Install mode

desktop placed

Other performance

PC software,support for Microsoft Windows 98/2000/XP/Vista/Windows 7,And the Internet Explorer6.0 and above version or browser compatibility, Firefox, etc.,
provide IPCMonitor.exe client software

Power supply

DC 5V

Sensor

0.3 Million CMOS Sensor

IP camera performance

Support video control, Two-way voice talkback, motion detection, external alarm(sends information to alarm the server by Email, FTP);
Manufacturers provide free DDNS, and has been written into equipment;
12 infrared lamps, 5 meters effectively;
automatically control through the

Audio input

With microphone

Audio output

provide the audio output interface

Alarm in

Not supported

Alarm out

Not supported

Power consumption

Power<6W

Appearance parameters

Body size

48*85*110mm

Product weight

564g

Environment parameters

Environment temperature

-10℃-50℃

Environment humidity

below 85% RH
