Features | Benefits |
---|---|
Windows
|
|

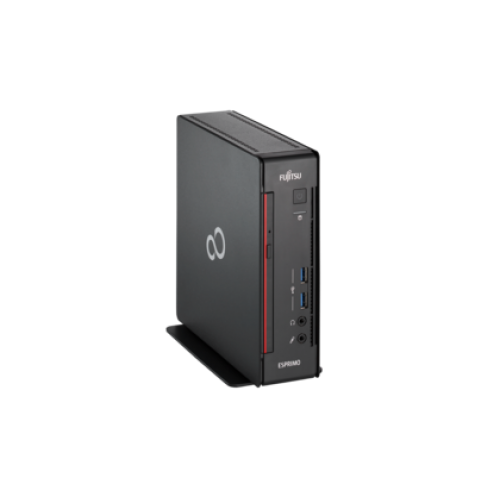

An elegant mini PC for challenging office tasks
|
|
Always Available Office PC - stay connected and save power
|
|
Made in Germany
|
|
Superb usability
|
|
Latest technology
|
|
Product | ESPRIMO Q556 |
---|---|
Operating system | Windows 7 Professional (available through downgrade rights from Windows 10 Pro) Windows 10 Pro. Fujitsu recommends Windows 10 Pro. Windows 10 Home |
Mainboard | D3403 (proprietary ) |
Chipset | Intel® H110 |
Processor | Intel® Core™ i7-6700T processor, 8 MB, 2.80 GHz, up to 3.6 GHz Intel® Core™ i5-6500T processor, 6 MB, 2.50 GHz, up to 3.1 GHz Intel® Core™ i5-6400T processor, 6 MB, 2.20 GHz, up to 2.8 GHz Intel® Core™ i3-6100T processor, 3 MB, 3.20 GHz Intel® Pentium® processor G4400T, 3 MB, 2.90 GHz |
Supported capacity RAM (max.) | 32 GB, 2 Memory slot(s) DIMM (DDR4), Dual channel support. For dual channel performance, a minimum of 2 memory modules have to be ordered. Capacity per channel has to be the same |
Serial ATA total | 2 |
thereof SATA III | Serial ATA III (6 Gbit), NCQ, AHCI |
Drives (optional) | DVD Super Multi ultra slim (tray), SATA BD Triple Writer SATA ultra slim (tray), SATA |
Hard disk drive | HDD SATA II, 5,400 rpm, 1,000 GB, 2.5-inch HDD SATA II, 5,400 rpm, 500 GB, 2.5-inch HDD SATA III, 7,200 rpm, 500 GB, 2.5-inch HDD SATA III, 7,200 rpm, 500 GB, 2.5-inch, enhanced availability SSD SATA III, 128 GB, 2.5-inch SSD SATA III, 256 GB, 2.5-inch SSD SATA III, 256 GB, 2.5-inch, SED SSD SATA III, 512 GB, 2.5-inch SSD SATA III, 512 GB, 2.5-inch, SED |
Drive bay | 1 x 5.25-inch external bay |
Interfaces | 1 x Audio: line-out 1 x Front audio: headphone 1 x Front audio: microphone 4 x USB 3.1 Gen1 (USB 3.0) total 2 x USB 2.0 total 2x USB 3.0 x USB front 2x USB 2.0 and 2x USB 3.0 x USB rear 1 x Serial (RS-232) 9pin, 16 byte FIFO, 16550 compatible 1 x Ethernet (RJ-45) 1 x Kensington Lock support 1 (DVI-D) x DVI 1 x DisplayPort 0/1 (with PC on/off function on Pin6) x Mouse / Keyboard (PS/2) |
Graphics | Intel® HD Graphics 510, Intel® HD Graphics 530, up to 1,782 MB |
Audio type | Realtek ALC671 |
Communication | 10/100/1,000 MBit/s Realtek RTL8111GN 1 (optional with Bluetooth together) x Integrated WLAN |
Weight | 1.6 kg 3.53 lbs |
Dimensions (W x D x H) | 185 x 190 x 54 mm 7.29 x 7.49 x 2.13 inch |
Power efficiency note | power supply efficiency (at 230V; 2 Watt/ 10% / 20% / 50% / 100% load) : x› 85%/ 90% / 90% / 92% / 92% |
Special features | Made in Germany, Low Power Active Mode, Extremely space-saving design, Zero Noise PC, Easy expandability, EraseDisk functionality |
Warranty period | 1 year (for countries in EMEIA) |
Warranty type | Bring-In / Onsite Service (for countries within region EMEIA, for all other countries depending on local regulations) |
