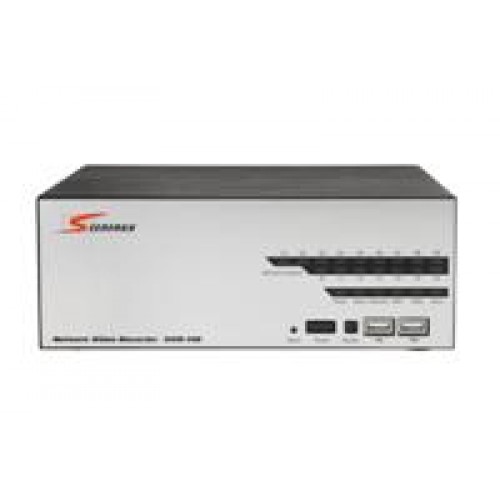

SEEnergy SVR-116 (16 Channel)

SEEnergy SVR-116 (16 Channel)
SEEnergy SVR-116 (16 Channel)
型　號： SVR-116
HK$7,390.00
購買數量： 加入購物車
收藏 對比


支援及服務

Bookmark and Share

KNS Shop 購物價惠：
** 部份地區免費送貨
** 電話技術支援安裝
** 保證原庄跟機配件
** 提供七天售後保障 (只限非人為損壞)

KNS承諾所有NVR均屬全新香港行貨 ㊣
並享有原廠保用服務 (條款以代理商提供為準)

請即致電 3170 7019 或電郵至 info@knshk.com 查詢及訂購。

The SEEnergy SVR-116 is designed for use within a surveillance system, and performs recordings and playbacks pictures from network cameras in the system. It is a recording device using a hard disk drive to record camera pictures instead of using video tapes so that pictures recorded by repeated overwriting will not experience deterioration of the recorded picture quality. Up to 16 cameras can be connected via a network and it is possible to record their camera pictures. It is possible to perform the settings or operate the NVR using a web browser installed on a PC connected to a network, or remote controller. Recorded video can be played back from remote site (PC, handset, PDA). Up to 4 PCs (web browsers) can access this unit concurrently and it is possible to perform the settings and operate this unit. SVR-116 is compatible with most major brand cameras and its ability to automatically search and find the available cameras on the network can greatly reduce the user effort when expanding the system.

Cameras
  • Supports Axis/Sony/Panasonic/AVTech/ACTi/Asoni
  • Add Camera: Manual/SEEnergy Smart IP Search
  • Max. Channel: 16

Video

 Compression: MJPEG/MPEG-4 Part 2/H.264
Resolution: MegaPixel/FD1/CIF/QCIF, or depends on camera
Max. Frame Rate: 480 fps (D1)
Audio Streaming: Two-way audio
Compression: G.711/G.726
Live View

Display Mode: Live View/Playback/Full Screen
Split Screen: 1/4/16
Full Screen: 16 videos
PTZ Support: Virtual PTZ Panel/Auto Pan/Preset Point/Preset Sequence
Sequence Mode: Sequence All/Manually Selected Cameras in 1/4 split view with configurable time interval
Snapshot: Video Snapshot in JPEG format
E-Map: Supports E-Map view for instant event alerts
Playback Split Screen: 1/4
Search Method: Time/Date, Event with thumbnails
Playback Controls: Play/Pause/Stop/Forward/Reverse/Speed Adjustable Forward and Rewind/Frame by Frame Forward
Recording Capacity: Depends on Hard Disk
Recording Mode: Manual/Continuous/Scheduling/Event
Schedule Types: Manual Select/Day Mode/Night Mode/Weekend Mode
Export AVI: Export Recorded videos to AVI format
Network Protocols: HTTP/SMTP/DHCP server and client/ARP/NTP/DNS/UPnP/FTP
Streaming Protocols: Depends on the supported cameras
User Management Management: User/Group
Number of Groups: 7 (administrator/Guest/User define x 5)
Privileges: Live View/Playback/System Configurations/Camera Configurations/Recording Configuration/Event Configuration/Maintenance
Triggers & Events

Event:
System Event -- System Start/Shutdown, System Settings Modified, Camera Settings Modified, Start Recycle, Disk Full
Camera Events -- Motion/Sensor Detection
Event Actions: HTTP/Mail/FTP/Buzzer/Record
Event Recording: Pre/Post Event Recordings
Central Management

Central Management: Support SEEnergy "Pi-Vu Central" Central Management Software (CMS)
Logs Log Types: Alert/Event/User Access
Language English/Japanese/Trad. Chinese/Simp. Chinese/Spanish

CPU and Memory
• ARM9 500Mhz/128MB DDR RAM

Ethernet
• 10BaseT / 100BaseT/1GBaseT and half duplex/full duplex auto-negotiation

HDD
• SATA HDD Slot x 2 **
• Max. Capacity 1TB per disk **

LED
• Cameras/Power/System/Network/HD/Alarm

Buttons
• Reset/Power/Buzzer

Connectors
• USB x 2
• RS-485
• DI/DO Connectors
• RS-232

Power
• 19V DC
• Power consumption: 90W

Dimensions
• 220 x 215 x 81 mm

Weight
• 10l lbs

Temperature
• Operating: 5 °C ~ 45 °C/41 °F ~ 113 °F
• Storage: -40 °C ~ 70 °C/-14 °F ~ 158 °F

Humidity
• 5% ~ 90% (non condensing)

Safety
• FCC Class A/CE/UL

**Hard Drive not included
