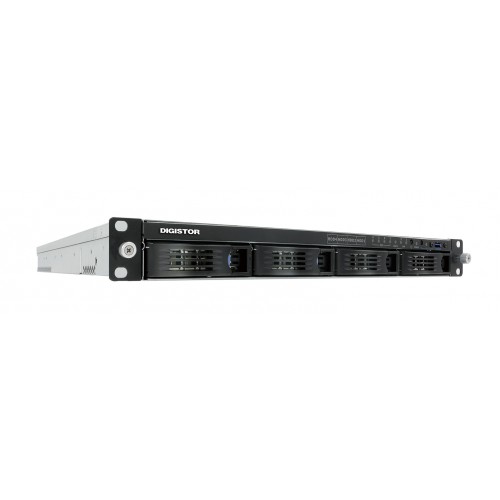

DIGIEVER DS-4236-RM-PRO 36-channel 4-bay 1U Rack-mount NVR w/ HDMI

DIGIEVER DS-4236-RM-PRO 36-channel 4-bay 1U Rack-mount NVR w/ HDMI
DIGIEVER DS-4236-RM-PRO 36-channel 4-bay 1U Rack-mount NVR w/ HDMI
型　號： DS-4236-RM-P
HK$23,580.00
購買數量： 加入購物車
收藏 對比


支援及服務

 Bookmark and Share

KNS Shop 購物價惠：
** 部份地區免費送貨
** 電話技術支援安裝
** 保證原庄跟機配件
** 提供七天售後保障 (只限非人為損壞)

KNS承諾所有NVR均屬全新香港行貨 ㊣
並享有原廠保用服務 (條款以代理商提供為準)

請即致電 3170 7019 或電郵至 info@knshk.com 查詢及訂購。





  • CPU

  • Intel

    •
  • Memory

  • 2GB DDRIII memory

    lGB Flash (DOM)

    •
  • HDD Capacity

  • Up to 24TB (Storage Capacity per HDD : 6TB)

    •
  • Number of HDD Supported

  • 2.5"/ 3.5" SATA HDD x 4

    (The standard system is shipped without HDD)

    •
  • HDD Tray

  • 4 x hot-swappable and lockable tray

    •
  • LAN Port

  • 2 x Gigabit RJ-45 Ethernet port

    •
  • LED Indicators

  • HDD 1, HDD 2, HDD 3, HDD 4,eSATA, LAN1, LAN2

    •
  • USB Connector

  • Front x 1: USB 3.0 for high speed video backup

    Back x 4: USB 2.0 for support pen drive, USB mouse, USB keyboard and USB UPS, etc.

    •
  • eSATA

  • 2 x eSATA port (Reserved)

    •
  • Buttons

  • Power, USB backup

    •
  • GPIO

  • 4 in, 2 out

    •
  • Output Connector

  • VGA x1/ HDMI x1 (for local display)

    •
  • Alarm Buzzer

  • System warning

    •
  • Form Factor

  • Rack mount

    •
  • Operation Environment

  • Temperature 0~45˚C

    Humidity 0~95% R.H.

    •
  • Power Supply

  • Input: 100-240V AC, 50/ 60Hz

    Output: 250W

    •
  • Security Design
  •
    •
  • Power Consumption

  • Operation: 54~65 W

    (with 4 x 500GB HDD installed and in RAID 5 building process)

    •
  • Fan

  • 3 x cooling fan (4cm)

    •
  • H/ W Dimensions

  • 44.1(H) x 481(W) x 661.65(D) mm
    1.73(H) x 18.9(W) x 26(D) inch

    •
  • Color Box Dimensions

  • 172(H) x 586(W) x 856(D) mm
    6.77(H) x 23.07(W)x 33.7(D) inch

    •
  • Carton Dimensions

  • 172(H) x 586(W) x 856(D) mm
    6.77(H) x 23.07(W)x 33.7(D) inch

    •
  • Color Box Shipping Weight

  • Net Weight(kg/PC):9.2

    Gross Weight(kg/PC):12.45

    Gross Weight(kg/CTN):12.45
