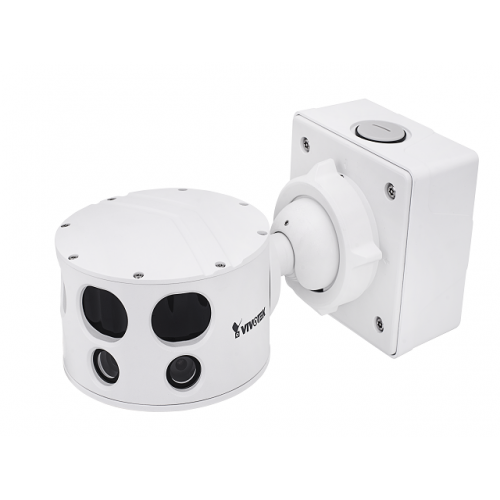

VIVOTEK MS8391-EV

VIVOTEK MS8391-EV
型 號: MS8391-EV
HK$12,800.00
購買數量: 加入購物車

KNS Shop 購物價惠:
** 部份地區免費送貨
** 電話技術支援安裝
** 保證原庄跟機配件
** 提供七天售後保障 (只限非人為損壞)


KNS承諾所有網路攝影機均屬全新香港行貨 ㊣
並享有原廠保用服務 (條款以代理商提供為準)


*所有地區加$380包基本安裝服務, 第2支起加$300

請即致電 3170 7019 或電郵至 info@knshk.com 查詢及訂購。



Overview

The VIVOTEK MS8391-EV is designed with multiple sensors providing higher resolution, maximizing the field of view and reducing the total number of cameras required, thereby saving on the installation costs. Featuring 4 x 3MP CMOS sensors, the multiple sensor network camera can monitor full horizontal views and deliver high-quality comprehensive coverage, making it an ideal outdoor surveillance solution with sharper images for more details. Covering a wide angle of 180 degrees, the MS8391-EV provides complete video security with no dead angles.

By having Multiple Sensors with 12-Megapixel resolution, users can ePTZ across the entire panoramic image for detailed views. With the powerful 3D Noise Reduction and Smart Stream technology, the MS8391-EV can also optimize quality for desired regions to maximize efficiency of bandwidth usage.

Additionally, as a professional day/night camera, it adopts a Smart IR technology which prevents overexposure and provides noise reduction to adjust the IR lighting intensity instantaneously based on the changes of light in the ambient environment. Finally, the MS8391-EV is armed with a robust IP66 and IK10-rated housing to enable the multisensor camera to withstand rain and dust as well as to protect against vandalism or tampering.



Specifications



Model MS8391-EV
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 128MB
RAM 1GB
Camera Features
Image Sensor 1/2.8" Progressive CMOS
Maximum Resolution 7552x1416
Lens Type Fixed-focal
Focal Length f = 6 mm
Aperture F1.6
Field of View 180° (Horizontal)
34˚ (Vertical)
Shutter Time 1/5 sec. to 1/32,000 sec.
WDR Technology WDR Enhanced
Day/Night Removable IR-cut filter for day & night function
Minimum Illumination 0.23 Lux @ F1.6 (Color)
0.01 Lux @ F1.6 (B/W)
Preset Locations 20 preset locations
Pan/Tilt/Zoom Functionalities ePTZ:
48x digital zoom (4x on IE plug-in,12x built in)
IR Illuminators Built-in IR illuminators, effective up to 30 meters
with Smart IR
IR LED*4
On-board Storage Slot type: MircoSD/SDHC/SDXC card slot
Seamless Recording
Video
Compression H.264 & MJPEG
Maximum Frame Rate 7 fps @ 7552x1416
Maximum Streams 4 simultaneous streams
S/N Ratio 63 dB
Dynamic Range 60 dB
Video Streaming Adjustable resolution, quality and bitrate
Configurable video cropping for bandwidth saving
Image Settings Time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Smart Stream
Audio
Audio Capability Audio input/output (full duplex)
Compression G.711, G.726
Interface External microphone input
External line output
Network
Users Live viewing for up to 10 clients
Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, NTCIP, ARP, SSL, TLS
Interface 10 Base-T/100 BaseTX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
