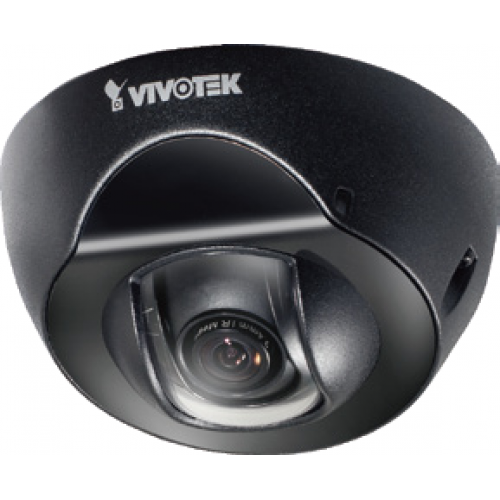

1.3-Megapixel CMOS Sensor
Compact Design
Real-time H.264 and MJPEG Compression (Dual Codec)
30 fps @ 1280x1024
Supreme Night Visibility
Removable IR-cut Filter for Day and Night Function
Built-in IR Illuminators, Effective up to 5 Meters
Built-in IEEE 802.3af Compliant PoE
Built-in MicroSD/SDHC Card Slot for On-board Storage
Vandal-proof IK10-rated Housing
Selectable Lens (f = 2.5 mm or 4 mm)
|
System Information
| CPU |
- Multimedia SoC (System-on-Chip)
|
| Flash |
|
| RAM |
|
|
Camera Features
| Image sensor |
|
| Maximum Resolution |
|
| Lens Type |
|
| Focal Length |
- f = 2.5 mm (FD8151V-F2)
- f = 4 mm (FD8151V-F4)
|
| Aperture |
- F2.0 (FD8151V-F2)
- F1.5 (FD8151V-F4)
|
| Auto-iris |
|
| Field of View |
- FD8151V-F2:
- 110° (horizontal)
- 86° (vertical)
- 142° (diagonal)
- FD8151V-F4:
- 64° (horizontal)
- 53° (vertical)
- 80° (diagonal)
|
| Shutter Time |
- 1/5 sec. to 1/32,000 sec.
|
| Day & Night |
- Removable IR-cut filter for day & night function
|
| Minimum Illumination |
- FD8151V-F2:
- 0.16 Lux, 50 IRE ( Color )
- 0.001 Lux, 50 IRE ( B/W )
- FD8151V-F4:
- 0.1 Lux, 50 IRE ( Color )
- 0.001 Lux, 50 IRE ( B/W )
|
| Pan / Tilt / Zoom |
- ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
|
| On-board Storage |
- MicroSD/SDHC/SDXC card slot
|
|
Video
| Compression |
|
| Maximum Frame Rate |
- H.264: 30 fps at 1280x1024
- MJPEG: 30 fps at 1280x1024
|
| Maximum Streams |
|
| S/N Ratio |
|
| Dynamic Range |
|
| Video Streaming |
- Adjustable resolution, quality and bit rate
- Configurable video cropping for bandwidth saving
|
| Image Settings |
- Adjustable image size, quality and bit rate
- Time stamp, text overlay, flip & mirror
- Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
- Scheduled profile settings
|
|
Audio
| Audio Capability |
|
| Compression |
|
| Interface |
|
|
Network
| Users |
- Live viewing for up to 10 clients
|
| Protocols |
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
|
| ONVIF |
- Supported, specification available at www.onvif.org
|
| Interface |
- 10Base-T/100 BaseTX Ethernet (RJ-45)
|
|
Intelligent Video
| Video Motion Detection |
- Triple-window video motion detection
|
|
Alarm and Event
| Alarm Triggers |
- Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
|
| Alarm Events |
- Event notification using HTTP, SMTP, FTP and NAS server
- File upload via HTTP, SMTP, FTP and NAS server
|
|
General
| Connectors |
- RJ-45 for Network/PoE connection
- Digital input*1
|
| LED Indicator |
- System power and status indicator
|
| Power input |
|
| Power consumption |
|
| Dimensions |
|
| Weight |
|
| Casing |
- Vandal-proof IK10-rated metal housing
|
| Safety Certifications |
- CE, LVD, FCC Class B, VCCI, C-Tick
|
| Operating Temperature |
- -10°C ~ 50°C (14°F ~ 122°F)
|
| Warranty |
|
|
System Requirements
| Operating System |
- Microsoft Windows 7/Vista/XP/2000
|
| Browser |
- Mozilla Firefox 7~10 (streaming only)
- Internet Explorer 7.x or 8.x
|
| Other Players |
- VLC: 1.1.11 or above
- QuickTime: 7 or above
|
|
