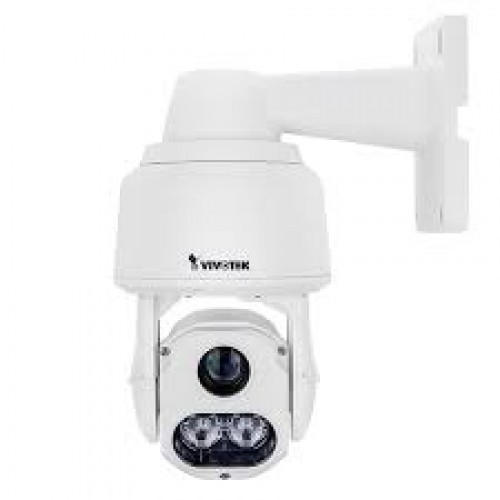

The SD9364-EHL is the latest professional speed dome camera from VIVOTEK, specifically designed to enhance low light surveillance in large coverage areas. Equipped with 150 M IR illuminators and a 30x optical zoom lens, the SD9364-EHL provides a superb low light image in the most challenging situations. The SD9364-EHL also adopts VIVOTEK's latest IR technology, VAIR (Vari-Angle IR). VIVOTEK's VAIR provides smooth vari-angle adjustment of the IR illuminators, allowing broad coverage FOV and highly uniform IR intensity while avoiding hot-spots traditionally associated with IR illumination.
Overview
Specifications
Model
SD9364-EHL
System Information
CPU
Multimedia SoC (System-on-Chip)
Flash
128 MB
RAM
512 MB
Camera Features
Image Sensor
1/3" Progressive CMOS
Maximum Resolution
1920x1080 (2MP)
Lens Type
30x Optical Zoom, Auto Focus
Focal Length
f = 4.3 ~ 129 mm (30x zoom)
Aperture
F1.6 ~ F4.7
Auto-iris
DC-iris
Field of View
2.3° ~ 64° (Horizontal)
1.3° ~ 36° (Vertical)
2.6° ~ 73° (Diagonal)
Shutter Time
1/8 sec to 1/30,000 sec
WDR Technology
WDR Pro
Day/Night
Removable IR-cut filter for day & night function
Minimum Illumination
0.42Lux @ F1.6 (Color)
0.001Lux @ F1.6 (B/W)
Pan Speed
0.1° ~ 300° / sec
Pan Range
360 endless
Tilt Speed
0.1° ~ 300° / sec
Tilt Range
220° ( -110° ~ +110° )
Preset Locations
256 preset locations
128 presets per tour
Pan/Tilt/Zoom Functionalities
128x digital zoom (4x on IE plug-in, 32x built-in)
Auto pan mode
Auto patrol mode
IR Illuminators
150 m
On-board Storage
Slot type: SD/SDHC/SDXC card slot
Seamless Recording
Video
Compression
H265, H264, MJPEG
Maximum Frame Rate
60 fps @ 1920x1080
In all compression mode
Maximum Streams
4 simultaneous streams
S/N Ratio
53.64 dB
Dynamic Range
110 dB
Video Streaming
Adjustable resolution, quality and bitrate
Smart Stream II
Image Settings
Adjustable image size, quality and bit rate
Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24)
Scheduled profile settings, defog, 3DNR, EIS
Audio
Audio Capability
Audio input/output (full duplex)
Compression
G.711, G.726
Interface
External microphone input
External line output
Network
Users
Live viewing for up to 10 clients
Protocols
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP,ARP, SSL, TLS, NTCIP
Interface
10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection
Five-window video motion detection
Auto-Tracking
Auto-tracking on moving object
Alarm and Event
Alarm Triggers
Manual trigger, periodical trigger, system boot, recording notification, audio detection, motion detection
Alarm Events
Event notification using digital output, HTTP, SMTP, FTP and NAS server
File upload via HTTP, SMTP, FTP and NAS server
General
Connectors
RJ-45 cable connector for 10/100/1000Mpbs
Network/PoE connection
Audio input
Audio output
DC 48V power input
Digital input*4
Digital output*2
RS-485 for PTZ control (PelcoD protocol, Baud rate 2400)
LED Indicator
System power and status indicator
Power Input
95W PoH/PoE
DC 48V
Power Consumption
Max. 81.8 W (Heater on)
Max. 28.5 W (Heater off)
Dimensions
Ø: 204 mm x 285 mm
Weight
Net: 6030 g
Casing
Weather-proof IP66, Vandal-proof IK10 and NEMA 4X-rated housing
Safety Certifications
CE, FCC Class A, VCCI, C-tick, NEMA 4X, UL
Operating Temperature
-50°C ~ 55°C (-58°F ~ 131°F)
Humidity
90%
Warranty
36 Months
System Requirements
Operating System
Microsoft Windows 8/7/Vista/XP/2000
Web Browser
Mozilla Firefox 7~43 (Streaming only)
Internet Explorer 7/8/9/10/11
Other Players
VLC: 1.1.11 or above
QuickTime: 7 or above
Included Accessories
CD
User's manual, quick installation guide, Installation Wizard 2, VAST 32-CH software
Others
Wall mount bracket, screws, waterproof connectors, terminal blocks, quick installation guide, warranty card, alignment sticker, ground wire, T25 stardriver, software CD, desiccant bags, AO-003 I/O cable
