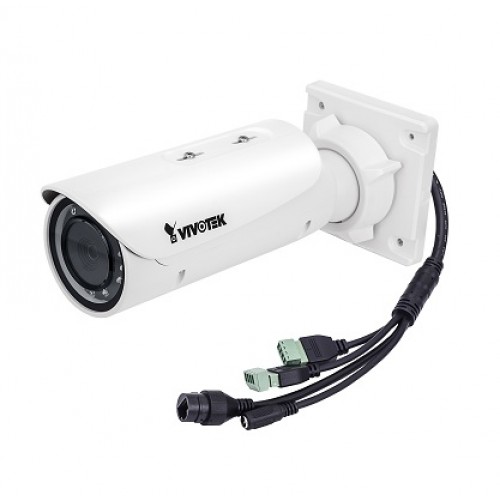

Model | IB8382-T: Vari-focal, P-iris, Remote Focus |
System Information | |
CPU | Multimedia SoC (System-on-Chip) |
Flash | 1Gb |
RAM | 4Gb |
Camera Features | |
Image Sensor | 1/3.2" Progressive CMOS |
Maximum Resolution | 2560x1920 (5MP) |
Lens Type | Vari-focal, Remote Focus |
Focal Length | f = 3 ~ 9 mm |
Aperture | F1.2 ~ F2.3 |
Auto-iris | P-iris |
Field of View | 35° ~ 78° (Horizontal) 27° ~ 54° (Vertical) 44° ~ 100° (Diagonal) |
Shutter Time | 1/5 sec. to 1/32,000 sec. |
WDR Technology | WDR Enhanced |
Day/Night | Removable IR-cut filter for day & night function |
Minimum Illumination | 0.04 Lux @ F1.2 (Color) 0.001 Lux @ F1.2 (B/W) |
Pan/tilt/zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in) |
IR Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR IR LED*8 |
On-board Storage | Slot type: SD/SDHC/SDXC card slot Seamless Recording |
Video | |
Compression | H.264 & MJPEG |
Maximum Frame Rate | 15 fps @ 2560x1920 15 fps @ 2048x1536 30 fps @ 1920x1080 In both compression modes |
Maximum Streams | 4 simultaneous streams |
S/N Ratio | Above 65 dB |
Dynamic Range | 70 dB |
Video Streaming | Adjustable resolution, quality and bitrate, Smart Stream |
Image Settings | Adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D Noise Reduction, Video Rotation, Defog |
Audio | |
Audio Capability | Two-way audio (full duplex) |
Compression | G.711, G.726 |
Interface | External microphone input Audio output |
Network | |
Users | Live viewing for up to 10 clients |
Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS |
Interface | 10 Base-T/100 BaseTX Ethernet (RJ-45) *It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. |
ONVIF | Supported, specification available at www.onvif.org |
Intelligent Video | |
Video Motion Detection | Five-window video motion detection |
VCA* | Line crossing detection, field detection, loitering detection |
Alarm and Event | |
Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card |
General | |
Smart Focus System | Remote focus |
Connectors | RJ-45 cable connector for Network/PoE connection Audio input Audio output DC 12V power input Digital input*1 Digital output*1 |
LED Indicator | System power and status indicator |
Power Input | DC 12V IEEE 802.3af/at PoE Class 0 |
Power Consumption | Max. 9.5 W |
Dimensions | Ø 88 x 293 mm |
Weight | Net: 1264 g |
Casing | Weather-proof IP66-rated housing Vandal-proof IK10-rated metal housing (Casing Only) |
Safety Certifications | CE, LVD, FCC Class A, VCCI, C-Tick, UL |
Operating Temperature | Starting Temperature: -10°C ~ 50°C (14°F~ 122°F) Working Temperature: -20°C ~ 50°C (-4°F~ 122°F) |
Warranty | 36 months |
System Requirements | |
Operating System | Microsoft Windows 7/8/Vista/XP/2000 |
Web Browser | Mozilla Firefox 7~10 (Streaming only) Internet Explorer 7/8/9/10/11 |
Other Players | VLC: 1.1.11 or above Quicktime: 7 or above |
Included Accessories | |
CD | User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software |
Others | Quick installation guide, warranty card, sun shield, wall mount bracket, waterproof RJ45 Ethernet enclosure, alignment sticker / desiccant bag, waterproof connector, screw |
