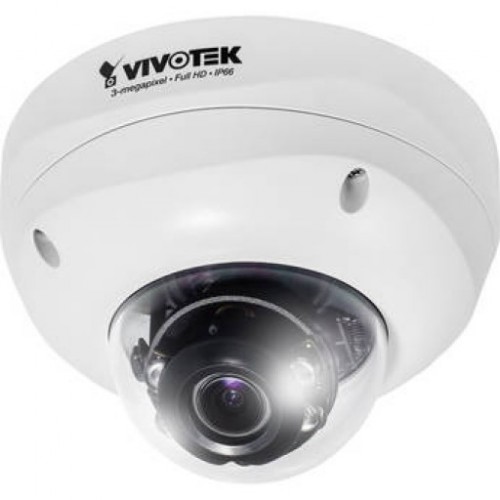

VIVOTEK FD8365HV

VIVOTEK FD8365HV
VIVOTEK FD8365HV
型　號： FD8365HV
HK$5,880.00
購買數量： 加入購物車
收藏 對比


支援及服務

Bookmark and Share

KNS Shop 購物價惠：
** 部份地區免費送貨
** 電話技術支援安裝
** 保證原庄跟機配件
** 提供七天售後保障 (只限非人為損壞)

KNS承諾所有網路攝影機均屬全新香港行貨 ㊣
並享有原廠保用服務 (條款以代理商提供為準)

*所有地區加$380包基本安裝服務, 第2支起加$300

 請即致電 3170 7019 或電郵至 info@knshk.com 查詢及訂購。



System Information
CPU
  • Multimedia SoC (System-on-Chip)
Flash
  • 256 MB
RAM
  • 384 MB
Camera Features
Image sensor
  • 1/2.8" Progressive CMOS
Maximum Resolution
  • 1920x1080 (2MP)
Lens Type
  • Vari-focal, remote focus
Focal Length
  • f = 3 ~ 10 mm
Aperture
  • F1.3 ~ F2.5
Auto-iris
  • P-iris/DC-Iris(Reserved)
Field of View
  • 33° ~ 104° (horizontal)
  • 19° ~ 56° (vertical)
  • 39° ~ 121° (diagonal)
Shutter Time
  • 1/5 sec. to 1/10,000 sec.
WDR Technology
  • WDR Pro
Day & Night
  • Removable IR-cut filter for day & night function
  • Smart IR Technology to Avoid Overexposure
Minimum Illumination
  • 0.42 Lux @ F1.3, 50 IRE (Color)
  • 0.001 Lux @ F1.3, 50 IRE (B/W)
Pan / Tilt / Zoom
  • ePTZ
  • 48x digital zoom ( 4x on IE plug-in,12x built-in )
IR Illuminators
  • Built-in IR illuminators, effective up to 20 meters
  • IR LED*4, with Smart IR Technology
On-board Storage
  • MicroSD/SDHC/SDXC card slot
Video
Compression
  • H.264, MJPEG
Maximum Frame Rate
  • In both compression modes:
    • 30 fps @ 1920x1080
Maximum Streams
  • 2 simultaneous streams
S/N Ratio
  • 62 dB
Dynamic Range
  • 100 dB
Video Streaming
  • Adjustable resolution, quality and bitrate
Image Settings
  • Time stamp, text overlay, flip & mirror
  • Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D noise reduction, seamless recording, video rotation, EIS
Audio
Audio Capability
  • Two-way Audio (full duplex)
Compression
  • AAC, G.711, G.726
Interface
  • External microphone input
  • Audio output
Network
Users
  • Live viewing for up to 10 clients
Protocols
  • IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP
Interface
  • 10 Base-T / 100BaseTX Ethernet (RJ-45)
ONVIF
  • Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection
  • Triple-window video motion detection
Alarm and Event
Alarm Triggers
  • Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
Alarm Events
  • Event notification using digital output, HTTP, SMTP, FTP and NAS server
  • File upload via HTTP, SMTP, FTP and NAS server
General
Smart Focus System
  • Remote focus
Connectors
  • RJ-45 for Network/PoE connection
  • Audio input/output
  • AV output
  • AC 24V power input
  • DC 12V power input
  • Digital input * 1
  • Digital output * 1
LED Indicator
  • System power and status indicator
Power input
  • 24V AC
  • 12V DC
  • IEEE 802.3af PoE
Power consumption
  • DC Max.7.6W
  • AC Max. 8.6W
  • PoE Max. 10.6W
Dimensions
  • Ø: 173 mm x 115 mm
Weight
  • Net: 1215 g
Casing
  • Weather-proof IP66-rated housing
  • Vandal-proof IK10-rated housing
Safety Certifications
  • CE, C-Tick, FCC Class A, LVD, VCCI, UL
Operating Temperature
  • Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F)
  • Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
Warranty
  • 24 Months
System Requirements
Operating System
  • Microsoft Windows 7 / Vista / XP / 2000
Browser
  • Mozilla Firefox 7~10 ( Streaming only )
  • Internet Explorer 7 / 8 / 9 / 10
Other Players
  • VLC: 1.1.11 or above
  • QuickTime: 7 or above

備註：
1. 上門設定是包括有：網絡攝像機(IP Camera)和寬頻分享器之接駁 (包 6 呎以下電腦 CAT5 線) 連 IP 及 Port 位設定，免費動態網址(DDNS)之申請，測試網絡攝像機於內聯網 ( Intarnet ) 及互聯網 ( Internet ) 之運作是否正常，一部指定類別手提裝置監控設定協助。無線寬頻分享器之上網連接及無線設定連測試 (如一併購買)。
2. 上述之售價並不包括：錄影軟件之安裝，電腦維修及檢查，放線(釘線), 上鏍絲, 鑽牆, 掛機等工程項目；如果有需要掛機，請事前通知及先行報價後才可安排服務。
3. 上門基本安裝服務之地區：除了離島、機場或下車後步行時間多於15分鐘之路程外 (需另加HK$100-HK$200附加收費)；其他地區也可以，詳情請致電 3170 7019查詢。
4. 上門設定服務時間為：星期一至星期五，上午10:00至下午7:00，星期六至下午4:00，星期日及公眾假期休息。
5. 上門服務為一次過性質之服務，如有需要再次上門，收費為HK$350 (離島、機場或下車後步行時間多於15分鐘之路程除外)。
