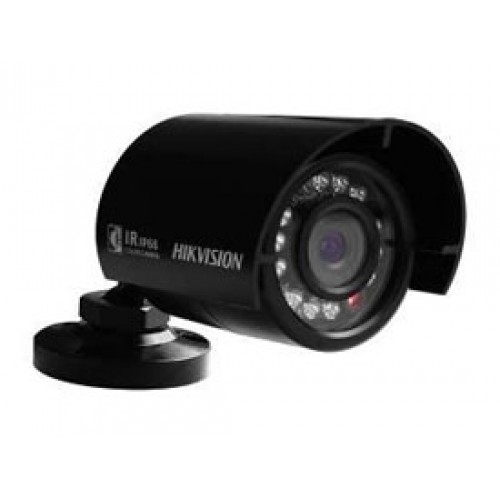

HIKVISION DS-2CC192P-IR

HIKVISION DS-2CC192P-IR
HIKVISION DS-2CC192P-IR
型　號： DS2CC192P-IR
HK$870.00
購買數量： 加入購物車
收藏 對比


支援及服務

Bookmark and Share

KNS Shop 購物價惠：
** 部份地區免費送貨
** 電話技術支援安裝
** 保證原庄跟機配件
** 提供七天售後保障 (只限非人為損壞)

KNS承諾所有網路攝影機均屬全新香港行貨 ㊣
並享有原廠保用服務 (條款以代理商提供為準)

請即致電 3170 7019 或電郵至 info@knshk.com 查詢及訂購。

 DS-2CC102/112/192P(N)-IR Analog IR Camera

· Compact Structure Design
· 1/3 inch SONY Super HAD CCD
· Minimum Illumination: 0.1Lux @ F1.2 (0 Lux With IR)
· Auto White Balance, Auto Gain Control, Electronic Shutter Control and Backlight Compensation
· Internal Synchronization
· Digital Signal Processing
· Weather Proof: IP66
· Advanced Engineering Design, High Reliability

Model
DS-2CC102P(N)-IR
DS-2CC112P(N)-IR
DS-2CC192P(N)-IR
Image Sensor
1/3 inch SONY Super HAD CCD
Signal System
PAL / NTSC
Effective Pixels
PAL: 500 (H) × 582 (V)
NTSC: 510 (H) × 492 (V)
PAL: 752 (H) × 582 (V)
NTSC: 768 (H) × 494 (V)
PAL: 752 (H) × 582 (V)
NTSC: 768 (H) × 494 (V)
Min. Illumination
0.1Lux @ F1.2 (0 LUX with IR)
Electronic Shutter
1/50(1/60)s to 1/100,000s
Lens
6mm (3.6mm, 2.8mm optional)
Horizontal Resolution
420 TVL
480TVL
540TVL
Synchronization
Internal Synchronization
Video Output
1Vp-p Composite Output (75Ω / BNC)
S/N Ratio
More than 48 dB
BLC
ON
Working Temperature
-10℃ ~ 60℃
Weather Proof
IP66
IR Distance
approx 10 to 20 meters
Power Supply
12V DC, ±10%
Power Consumption
3W MAX
Dimension (mm)
Φ58 × 80.5 (Φ2.3”× 3.2”)
Weight
250g (0.55lbs)
