HIKVISION DS-2CC112P-IR5

HIKVISION DS-2CC112P-IR5
HIKVISION DS-2CC112P-IR5
型　號： DS2CC112PIR5
HK$1,150.00
購買數量： 加入購物車
收藏 對比


支援及服務

Bookmark and Share

KNS Shop 購物價惠：
** 部份地區免費送貨
** 電話技術支援安裝
** 保證原庄跟機配件
** 提供七天售後保障 (只限非人為損壞)

KNS承諾所有網路攝影機均屬全新香港行貨 ㊣
並享有原廠保用服務 (條款以代理商提供為準)

請即致電 3170 7019 或電郵至 info@knshk.com 查詢及訂購。

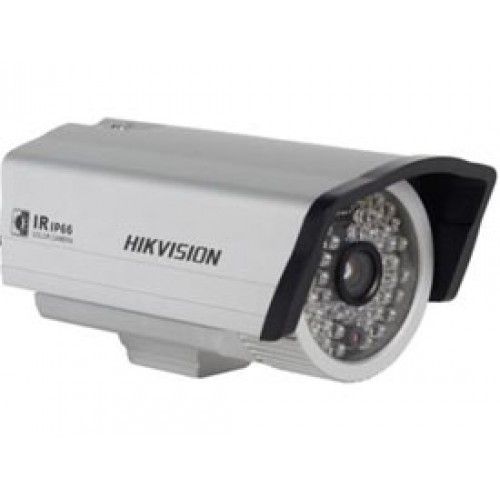

DS-2CC102/112/192P(N)-IR5 Analog IR Camera



· Compact Structure Design
· 1/3 inch SONY Super HAD CCD
· Minimum Illumination: 0.1Lux @ F1.2 (0 Lux With IR)
· Auto White Balance, Auto Gain Control, Electronic Shutter Control and Backlight Compensation
· Internal Synchronization
· Digital Signal Processing
· Weather Proof: IP66
· Advanced Engineering Design, High Reliability
DS-2CC102P(N)- IR5
DS-2CC112P(N)- IR5
DS-2CC192P(N)- IR5
Image Sensor
1/3 inch SONY Super HAD CCD
Signal System
PAL / NTSC
Effective Pixels
PAL: 500 (H) × 582 (V)
NTSC: 510 (H) × 492 (V)
PAL: 752 (H) × 582 (V)
NTSC: 768 (H) × 494 (V)
PAL: 752 (H) × 582 (V)
NTSC: 768 (H) × 494 (V)
Min. Illumination
0.1Lux @ F1.2 (0 LUX with IR)
Electronic Shutter
1/50(1/60)s to 1/100,000s
Lens
16mm (3.6mm, 6mm, 8mm, 12mm optional)
Horizontal Resolution
420 TVL
480TVL
540TVL
Synchronization
Internal Synchronization
Video Output
1Vp-p Composite Output (75Ω / BNC)
S/N Ratio
More than 48 dB
BLC
ON
Working Temperature
-10℃ ~ 60℃
Weather Proof
IP66
IR Distance
approx 50 to 60 meters
Power Supply
12V DC, ±10%
Power Consumption
8W MAX
Dimension (mm)
86.5 × 83 × 160 (3.43” × 3.29” × 6.34”)
Weight
1000g (2.2lbs)
