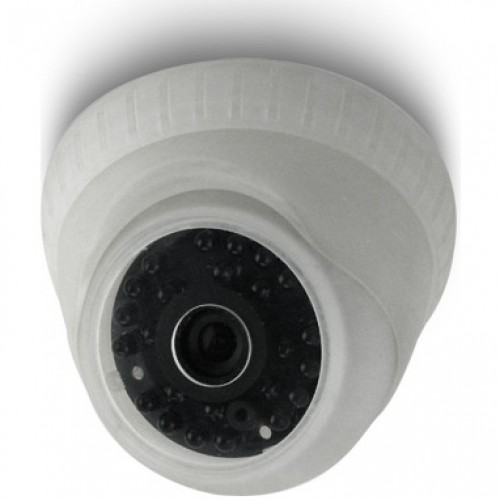

1/3" H.R Color CCD IR Camera Features
．High resolution for clearer and sharper images
．High sensitivity in the dark environment, 0.1 Lux / F2.0, 0Lux (IR ON)
．Day and night features for 24-hour surveillance
．IR LED effective range reaches up to 15 meters
|
MODEL |
KPC133EW |
| Pick up Element | 1/3" H.R. Color CCD image sensor |
| Number of Pixel | 771(H) x 492(V) |
| Resolution | 500 TV Lines |
| Min. Illumination | 0.1 Lux / F2.0, 0Lux (IR ON) |
| IR LED | 21 units |
| Effective Range | Up to 15 Meters |
| S/N Ratio | More than 48dB (AGC OFF) |
| Electronic Shutter | 1/60 (1/50) to 1/100,000 sec. |
| Lens | f3.6mm / F2.0 |
| Lens Angle | 92.6° |
| IRIS Mode | AES |
| White Balance | ATW |
| Video Output | 1.0 Vp-p composite, 75Ω |
| Power Source (±10%) | DC12V |
| Current Consumption (±10%) | 90mA (IR OFF), 280mA (IR ON) |
| Dimensions (mm)** | 94.1(Θ) x 70.7(H) |
