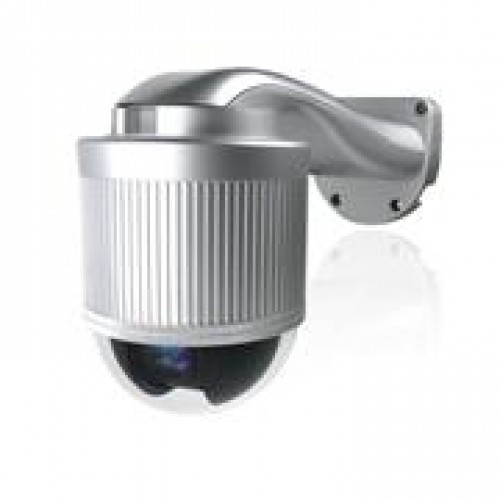

1/4" SONY 高解析度彩色快速球攝影機 (智慧型自動追踪功能、DCCS 傳輸)
産品特色
.Supports DVR / Camera Communication System (DCCS) Technology
.Advanced Auto Tracking Accuracy
.Smart Zoom
.22X Optical Zoom
.Rigid & High-Speed Pan / Tilt Mechanism with Two-Million Rotation Test Passed
.Pelco-D & Pelco-P Support
.Flexible Color / Shutter Parameters Adjustment
.Hot Point
.Graphical On-Screen Display
.Easy Operation via Keyboard Controller
.IP66, suitable for outdoor use
.Up to 256 preset points & eight preset groups, and Auto Scan
産品規格
Model |
AVK544 |
GENERAL : | |
---|---|
Signal System | NTSC or PAL |
Pick-up Element | 1/4" Sony Color Super HAD CCD Image Sensor |
Number of Pixels | 768(H)*494(V) |
Resolution | 480TV |
Min. Illumination | 0.6 Lux / F1.6 |
S/N Ratio | More than 48dB (AGC Off) |
Video Output | 1.0 Vp-p. 75Ω |
BLC | On / Off |
Gain Control | Low, Medium & High / Off |
Sharpness | Auto / Low / Medium / High |
White Balance | Auto / Indoor 1 / Indoor 2 / Sun / Cloudy * Indoor1 = 9000K; Indoor2 = 3000K; Sun = 5500K; Cloudy = 7000K |
Camera Title | 10 characters or symbols |
Preset Points and Sequence | Total 8 groups, 256 programmable preset points * The sequence of all the preset points will follow the order of the minimal panning route. |
Auto Tracking | Yes (combined with auto zoom focus tracking & smart zoom) |
Baud Rate | 9600 |
LENS : | |
Focal Length | f3.9 mm ~ f85.9 mm |
F-number | F1.6 (Wide) ~ 3.7 (Tele) |
Viewing Angle | 4°~ 60° |
Auto Electronic Shutter | 1 / 60 (1/50) to 1 / 100,000 sec. |
Auto Focus | Always / PTZ / Z Only / P Only |
MECHANISM | |
Pan Range | 360° |
Pan Speed | 360° / 1 sec * The pan speed can be adjusted according to the different pan speed mode. |
TiltRange | 90° |
Tilt Speed | 0° ~ 90° under 1 sec |
Zoom Ratio | 22X optical zoom |
Zoom Speed | Approx. 7s (Tele ~ Wide) |
OTHERS : | |
IP Rating | IP66 |
Ambient Operating Temperature | -10°C ~ 40°C |
Power Source (±10%) | DC 12V |
Current Consumption | 1.5A (max) |
Dimensions (mm)** | 145(Ø) x 184(H) (bracket not included) |
Gross Weight (kg) | Approx. 1.2kg |
Optional Bracket | Wall-mounted |
Optional Device | Keyboard controller |
