- 網路標準
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.11ac, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4, IPv6
- Product Segment
AC1200 enhanced AC performance; 300+867Mbps
- 傳輸速率
802.11a : 6,9,12,18,24,36,48,54Mbps
802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 300Mbps
802.11ac: up to 867Mbps
- 天線規格
Internal PCB antenna x 4
- 運作頻率
2.4GHz/5GHz
- Encryption
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, Radius with 802.1x, WPS support
- Firewall & Access Control
Firewall: SPI intrusion detection,DoS protection
Access control: Parental control, Network service filter, URL filter, Port filter
- 管理程式
UPnP, DLNA, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Triger, Virtual Server, DMZ, Universal Repeater, System Event Log
- VPN Support
IPSec Pass-Throuth
PPTP Pass-Through
L2TP Pass-Through
PPTP server
- WAN Connection Type
Internet connection type :
WAN Bridge support
Multicast Proxy support
Multicast Rate Setting support
- Utilities
.Download master
- support BT, NZB, HTTP, ED2K
- support encryption, DHT, PEX and magnet link
- upload and download bandwidth control
- download scheduling
.Media server:
Image: JPEG
Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg
Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
.QoS:
WMM
User definable rules for IP/MAC/Port. Upload and Download bandwidth management.
ACK/SYN/FIN/RST/ICMP with Highest priority
.Guest Network
2.4GHz guest network x 3, 5GHz guest network x 3
.Printer Server: multifunctional printer support(Windows nly), LPR protocol support
.File server: Samba and FTP server with account management
.PPTP VPN server
.Network map
.Traffic monitor
- Ports
1 x RJ45 for 10/100/1000/ BaseT for WAN, 4 x RJ45 for 10/100/1000/ BaseT for LAN
USB 2.0 x 1
USB 3.0 x 1
- Button
WPS Button, Reset Button, Power Switch, Wireless on/off Button
- LED Indicator
PWR x 1
LAN x 1
WAN x 1
USB x 2
AIR x 2
- 電源控制器
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2 A current
- 作業系統支援
Windows® 8.1
Windows® 8
Windows 7
Windows Vista
Windows 2000
Windows ME
Windows XP
Mac OS X 10.4 or higher
Mac OS X 10.1 or higher
Windows® Server 2003
Mac OS X 10.x or higher
Windows® Server 2008
Linux Kernel (Support Ubuntu only)
Mac OS X
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Linux
- 規格
147 x 205 x 66 cm (WxHxD)
- 重量
406 g
- 包裝內容

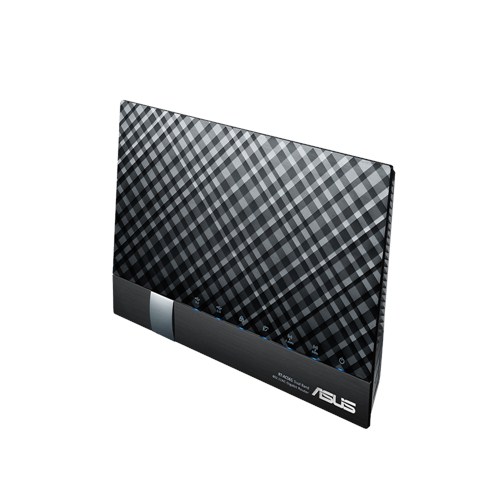

1 x RT-AC56U Dual Band Wireless-AC1200 Gigabit Router
1 x RJ-45 cable
1 x Power adapter
1 x Warranty card
1 x QSG
1 x Support CD(user manual and ultility)
- Router Special Features
3G/4G data sharing, AiCloud, Printer server, AiDisK, Multiple SSIDs, Parental Control
- Operation mode
Wireless router mode
Access point mode
Media bridge mode
