Product Segment
N900 ultimate performance : 450+450 Mbps
Coverage
Large homes
Data Rate
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 450 Mbps
Antenna
Detachable antenna x 3
Transmit/Receive
MIMO technology
2.4 GHz 3 x 3
5 GHz 3 x 3
Memory
32 MB Flash
256 MB RAM
Operating Frequency
2.4 GHz / 5 GHz
Encryption
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
Firewall & Access Control
Firewall: SPI intrusion detection, DoS protection
Access control: Parental control, Network service filter, URL filter, Port filter
Management
UPnP, DLNA, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Virtual Server, DMZ
WAN Connection Type
Multicast Proxy support
Ports
RJ45 for 10/100/1000/Gigabits BaseT for WAN x 1, RJ45 for 10/100/1000/Gigabits BaseT for LAN x 4, Support Ethernet and 802.3 with max. bit rate 10/100/1000/Gigabits Mbps and auto cross-over function(MDI-X)
USB 2.0 x 2
Button
WPS Button, Reset Button, Power Button
Features
Airtime Fairness
SmartQoS
- WMM
- User definable rules for IP/MAC/Port
- Upload and download bandwidth management
- ACK/SYN/FIN/RST/ICMP with highest priority
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz x 3
VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, OpenVPN Server
VPN client : PPTP client, L2TP client, OpenVPN client
Enhanced media server (AiPlayer app compatible)
- Image : Jpeg
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
Dual WAN
IPTV support
LED Indicator
Power x 1
WAN x 1
LAN x 4
USB x 1
Wi-Fi x 2
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1.58 A current
OS Support
Windows® 10
Windows® 8.1
Windows® 8 , 32bit/64bit
Windows® 7 , 32bit/64bit
Windows® Vista , 32bit/64bit
Windows® XP , 32bit/64bit
Mac OS X
Linux
Dimensions
207 x 148.8 x 35.5 ~ mm (WxDxH)
Weight
450 g
Package Content

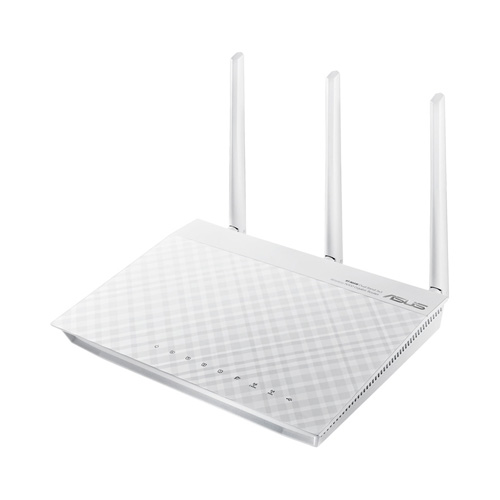

RT-N66W wireless router
Stand
RJ-45 cable
Power adapter
Warranty card
Quick start guide
Operation mode
Wireless router mode
Range extender mode
Access point mode
Media bridge mode
