Technical Specifications
Hardware
RF: 2.4 Frequency Band
Standard: IEEE 802.11b/g/n
IEEE 802.11b/g: 2.400~2.484 GHz
Data Rate: Up to 300 Mbps
Transmit Power
2.4 GHz: 28 dBm
Maximum power is limited by regulatory power
Antenna Array
Two (2) Detachable 5 dBi high gain omni-directional antennas for 2.4 GHz
Omni-directional Type
Provides optimal coverage
Compliant with N Type Connector
Frequency: 2.4 GHz
Average Antenna Gain: 5.0 dBi
Polarization: Linear
Azimuth Beam-Width 360º
Elevation Beam-Width 28º
VSWR: 1:2.0
Dimension: 22.8Φx187(L)mm
Physical Interface
2 x 10/100/1000 BASE-T Ethernet Ports
LAN 1 Supports 802.3at PoE Input
LAN 2 Supports Signal Extension
LED Indicators
Power Status
LAN 1 Supports 802.3at PoE Input
LAN 1 Supports 802.3at PoE Input
LAN 1: Gigabit Ethernet PoE
EPE-48GR PoE Injector
1 x Reset Button
1 x DC IN 48 V/0.5A
1 x AP/Bridge Port
1 x Gigabit Ethernet (10/100/1000 Mbps) Port
Power Requirements
Active Ethernet (Power-over-Ethernet)
Proprietary PoE Design
Power Adapter (United States) 48V/ 0.5A
Power Source: 802.3at Compliant
Power Consumption: Up to 22 Watts
Supported Radio Technologies
802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11g/n: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n with 20/40 MHz Channel Width
802.11b/g with 20 MHz Channel Width
Supported Modulation Types
802.11b: BPSK, QPSK, CCK
802.11b/g/n: BPSK, QPSK, 16-QAM, 64-QAM
Supported Data Rates (Mbps):
802.11b: 1, 2, 5.5, 11
802.11g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5~300 (MCS0 to MCS15)
Power Source
802.3at or 48V Compliant Source
Software
Management
Auto Channel Selection
Setting Varies by Regulatory Domains
SSIDs
BSSID Support
Supports 8 SSIDs
VLAN Pass-Though
VLAN Pass-through over WDS Bridge Mode
Supports 8 SSIDs
SNMP & MIB v1/v2c/v3 Support
MIN I/II, Private MIB
Save Configuration as Default
Client Traffic Status
Guest Network
Email Alerts
Firmware Upgrade: Via web browser, settings are reserved after upgrade
Reset & Backup: Reset to factory default. User can export all setting into a file via Web
QoS
RADIUS Accounting
Wireless / Network
PPPoE: Point-to-Point Protocol over Ethernet in Client Router mode
(this function will keep trying when failed or disconnected)
PPTP: Point-to-Point Tunneling Protocol (PPTP) is a method for implementing virtual private networks
Control Features
CLI
Distance Control (Ack Timeout)
Multicast Supported
Multicast Supported
Wi-Fi Scheduler
Fast Roaming
Fast Handover
Wireless Security
WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise (WPA-EAP using TKIP)
802.1X RADIUS Supplicant (Client Bridge Mode)
Hidden SSID Broadcast
MAC Address Filtering, Up to 32 MACs per field
L2 Isolation (Access Point Mode)
Wireless STA (Client) connected list
Https
SSH
QoS (Quality of Service)
Complaint with IEEE 802.11e Standard
Environmental & Mechanical
Temperature Range
Operating: -4º~158ºF/-20ºC~70ºC
Storage: -22Fº~176ºF/-30ºC~80ºC
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
Waterproof
IP68-Rated Enclosure
Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on distance between devices or traffic and bandwidth load in the network. Features and specifications subject to change without notice. Trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright ©2014 EnGenius Technologies, Inc. All rights reserved. Compliant with FCC - This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense.
Dimensions & Weights
ENH700EXT Device
Weight: 3.67 lbs.
Width: 11.22”
Length: 8.58”
Height” 2.19”
Package Contents
ENH220EXT Single Band N300 Outdoor Access Point
Power Adapter
PoE Injector (EPE48GR)
2 x 5 dBi omni-directional N-Type antennas
Pole Mount Bracket
Wall Mount Base
Mounting Screw Set
Quick Installation Guide
Warranty
1 Year
Surge Protection
ESD Protection: 8KV (Air); 4KV (Contact)
Surge Protection: 4KV (Certificated Standard is 1KV)
Suggested Products
EGS7252FP 48-Port Gigabit PoE+ L2 Managed Switch with 4 Dual-Speed SFP
EGS7228FP 24-Port Gigabit PoE+ L2 Managed Switch with 4 Dual-Speed SFP
EGS7228P 24-Port Gigabit PoE+ L2 Managed Switch with 4 Dual-Speed SFP
EGS5212FP 8-Port Gigabit PoE+ Layer 2 Switch with 2 Gigabit Uplink Ports & 2 Dual-Speed SFP

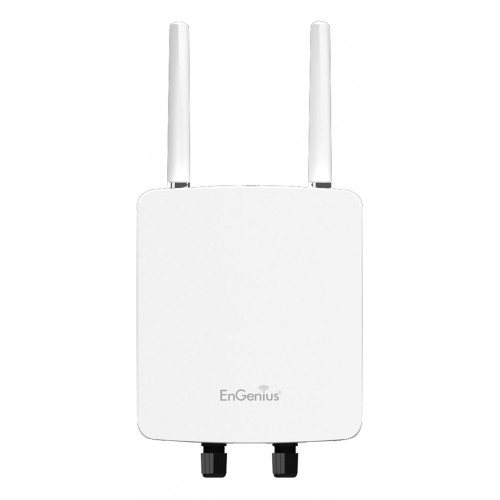

![EnGenius 11n 300M Premium Outdoor PoE Access Point [P/N: EG-ENH220EXT]](https://www.knshk.com/image/cache/data/product/EG-ENH220EXT-500x500.jpg "EnGenius 11n 300M Premium Outdoor PoE Access Point [P/N: EG-ENH220EXT]")
