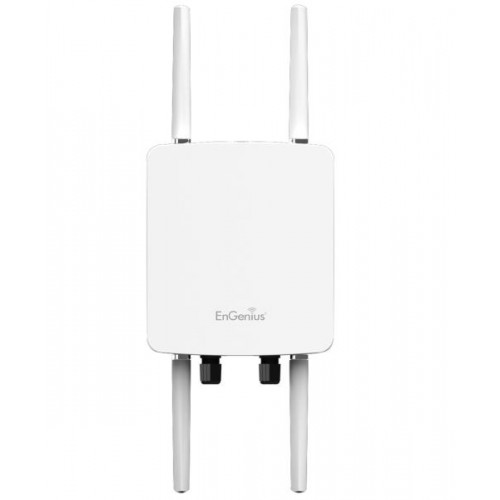

EnGenius 11a/n 300M Dual Band Outdoor PoE Access Point [P/N: EG-ENH710EXT]

Technical Specifications

Hardware
RF: 2.4 and 5 GHz Frequency Bands
Standard: IEEE 802.11a/b/g/n
Radio I: 11b/g: IEEE 802.11b/g: 2.400~2.484 GHz
Radio II: 11a: IEEE 802.11a: 5.15~5.35 GHz, 5.47~5.725 GHz, 5.725~5.825 GHz
Data Rate: Up to 450 Mbps on both frequency bands
Memory: 128MB
Flash Memory: 16MB
Peak Power: Up to 22W

Antenna Array
Four (2) External N-type omni-directional antennas
Two (2) x 5 dBi omni-directional antennas for 2.4 GHz
Two (2) x 7 dBi omni-directional antennas for 5 GHz
Omni-directional Type
Provides Optimal Coverage
Compliant with N Type Connector
Frequency: 2.4 & 5 GHz
Average Antenna Gain: 5.0 dBi for 2.4 GHz, 7.0 dBi for 5 GHz
Polarization: Linear
Azimuth Beam-Width 360º
Elevation Beam-Width 28º for 2.4 GHz, 13º for 5 GHz
VSWR: 1:2.0
Dimension: 22.8Φx187(L) mm

Transmit Power
2.4 GHz: Max 27 dBm
5 GHz: Max 27 dBm

Physical Interface
LAN 1: RJ-45 Gigabit Ethernet (10/100/1000 Mbps) - PoE Capable 802.3at (input)
LAN 2: RJ-45 Gigabit Ethernet (10/100/1000 Mbps) - PoE Capable 802.3af (output)
Both Gigabit Ethernet ports support Surge Protection up to 1.5KV
1 x Reset Button on PoE Injector
1 x Power Connector

LED Indicators
Power
LAN 1
LAN 2
2.4 GHz
5 GHz

Power Requirements
Active Ethernet (Power-over-Ethernet), DC IN 48 V/0.8A
Proprietary PoE Design
Power Adapter (United States) 48V/0.8A
Power Source: 802.3at Compliant
Power Consumption: Up to 22 Watts

Modulation Technology
IEEE 802.11b: BPSK, QPSK, CCK
IEEE 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM

Management

Operation Modes
Access Point, Client bridge, WDS

WDS Detail
WDS AP
WDS Bridge
WDS Station

Multiple BSSID
Supports up to 16 SSIDs; 8 SSIDs per radio
BSSID Support

LAN
IP (check validity and DHCP server IP range) MAC

SSID-to-VLAN Tagging
Supports 802.1q SSID-to-VLAN tagging / Pass through
Independent VLAN Settings can be enabled or disabled
Any packet without a VLAN tag will be inserted with a PVID (Ethernet Port VID)
Client Traffic Status

Spanning Tree
Supports 802.1d Spanning Tree Protocol

Wireless
PPPoE: Point-to-Point Protocol over Ethernet in Client Router mode
(This function will keep trying when failing or disconnected)
PPTP: Point-to-Point Tunneling Protocol (PPTP) is a method for implementing virtual private networks

QoS
Compliant with IEEE 802.11e Standard

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Other Management Features
Client Statistics
Save Configuration as User Default
Fast Roaming
Email Alerts
RADIUS Accounting
Guest Network

Control Features
CLI Supported
Distance Control (Ack Timeout)
802.1X Supplicant (Client Bridge mode)
Multicast Supported
Wi-Fi Scheduler
Multicast Supported
Band Steering
Fast Handover

Security
WEP Encryption (64, 128, 152 bit)
WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise (WPA-PSK using TKIP or AES)
Hide SSID in beacons
MAC Address Filtering - up to 32 MACs per SSID
Wireless STA (Client) Connection List
Https Support
SSH Support
