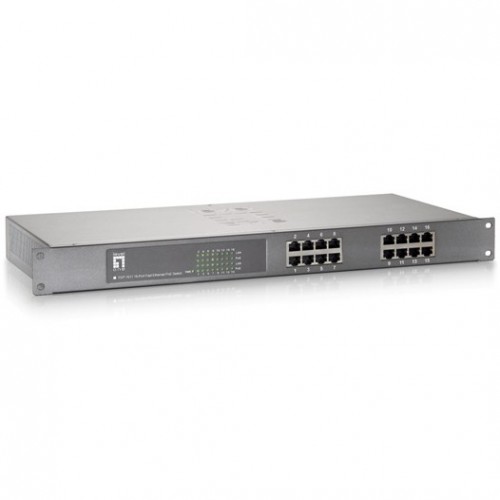

LevelOne FEP-1611 16-Port Fast Ethernet PoE Switch

FEP-1611
16-Port Fast Ethernet PoE Switch

-  Complies with IEEE802.3af, IEEE 802.3, IEEE 802.3u and IEEE 802.3x
-  16 PoE ports support 15.4W power to PoE Powered Device
-  Each Switching port supports 10/100Mbps auto-negotiation
-  Auto-MDI/MDI-X detection on each RJ-45 port
-  4K MAC address table, automatic source address learning and ageing
-  19-inch rack mount size with holder
-  Internal full-range power supply
-  Total PoE power budget: 246.4W

Product Overview
The LevelOne FEP-1611 is a high-performance 10/100Mbps Ethernet PoE Switch. Each PoE Port is powered up to 15.4W. The total PoE power budget is 246.4W. The switch automatically detects IEEE802.3af compliant powered devices and provides power and data over a single cable. It’s an ideal solution for office and home users to utilize a combination of PoE and non-PoE devices.

Rack-mount PoE Solution
With data and power over Ethernet from one unit, the FEP-1611 shall reduce cables and eliminates the need for dedicated outlets on the wall, ceiling or any unreachable place. A wire carries both data and power lowering the installation costs, simplifying the installation effort and eliminating the needs for electricians or extension cords.

Stable and reliable network Environment
FEP-1611 enables users to deploy a stable and reliable high-speed LAN environment, with store-and-forward switching architecture, the FEP-1611 provide a stable and reliable packet error filtering and non-blocking packet forwarding architecture. The device supports N-way auto-networking speed and duplex modes.

Easy to use
Providing 16 PoE interfaces, the FEP-1611 is ideal for small business and workgroup requiring to deploy the PoE for the wireless access points, IPbased surveillance camera or IP phones in any places easily, efficiently and cost effective. For instant error detection, the FEP-1611 is equipped with LED Indicators to define problems on the network.
