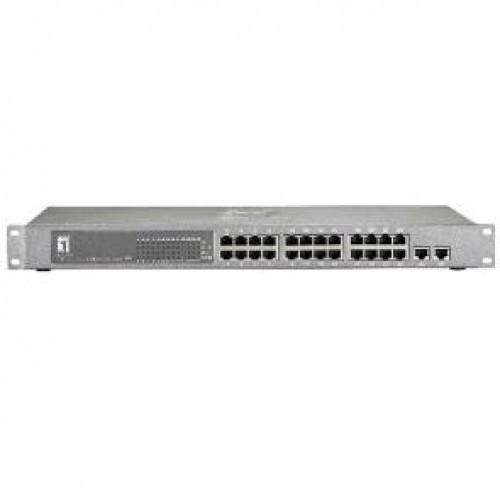

LevelOne FGP-2412 24 FE PoE Plus + 2 GE with 2 Combo SFP Switch

FGP-2412
24 FE PoE Plus + 2 GE with 2 Combo SFP Switch

-  24 10/100Base-TX RJ-45 ports
-  2 10/100/1000Base-T RJ-45 ports with 2 1000Base-X SFP slots
-  Compatible with IEEE 802.3, 802.3u, 802.3ab Ethernet standards
-  Compatible with IEEE 802.3af/at PoE standards
-  Supports Auto-MDI/MDI-X detection on each RJ-45 port
-  Provides back pressure/IEEE 802.3x flow control for half-/full-duplex operation
-  High performance Store-and-Forward architecture
-  Provides 8.8Gbps backplane and non-blocking switch architecture
-  4K MAC address table with Auto-learning/Auto-ageing
-  19-inch rack mount with holder
-  Max.PoE power per port: 30W(port 1-8), 15.4W(port 9-24)
-  Power Budget: 486.4W

LevelOne FGP-2412 provides 8 10/100Mbps ports with IEEE 802.3at PoE supported and 16 10/100Mbps ports with IEEE 802.3afPoE supported and plus 2 Gigabit Combo SFP ports. It supports MDI / MDI-X convertible on 24-10/100Mbps ports and provides PoE inject
function on PoE ports.

With its 8.8Gbps non-blocking switch fabric, 4K MAC Address table, and 802.3x, full-duplex flow control, the FGP-2412 offers wire-speed packet transfer performance without risks of packet loss. All 24 Fast Ethernet RJ-45 copper interfaces support 10/100Mbps and 2 Gigabit Ethernet RJ-45 copper interfaces support 10/100/1000Mbps autonegotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. MDI/MDI-X auto detection is provided for direct wire connection to any Ethernet devices like switches, hubs, or workstations without requiring a crossover cables. Through the front panel LED indicators, users can easily tell the network
connection status directly from the indicators.

The FGP-2412 also provides a simple, cost-effective, and highly reliable network connection for data and power transmission. Furthermore, it is the ideal device for bridging among Ethernet, Fast Ethernet workgroups and networks. It fits all kind of Ethernet installations such as campus, workgroup, department, enterprise, telecom or industrial applications.
