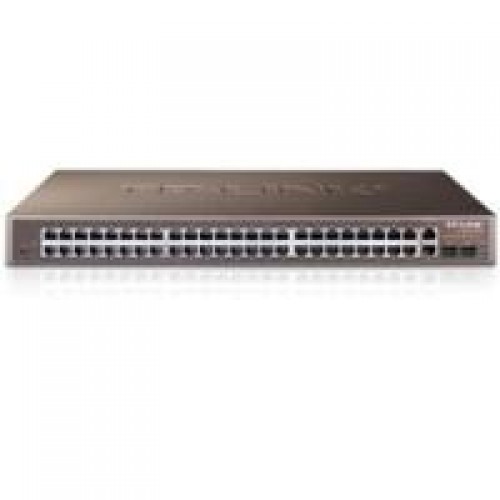

48-Port 10/100Mbps + 4-Port Gigabit Web Smart Switch Highlights: -48 10/100Mbps Ports, 2 10/100/1000Mbps Port, and 2 Gigabit SFP Slot -Web-based management for quick and easy setup -Supports Port-Based VLAN and IEEE 802.1Q Tag VLAN -Supports Static MAC address and filtering MAC address management
TL-SL2452WEB
|
Hardware Features
|
|
|
STANDARDS AND PROTOCOLS
|
IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1q, 802.1p
|
|
INTERFACE
|
48 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
2 10/100/1000Mbps Auto-Negotiation RJ45 port (Auto MDI/MDIX)
2 Gigabit SFP ports
|
|
NETWORK MEDIA
|
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X: MMF, SMF
|
|
BUTTON
|
Reset Button
|
|
POWER SUPPLY
|
Input: 220~240VAC, 50/60Hz Output: 5.0VDC/7A
|
|
DIMENSIONS(W×D×H)
|
17.3*10.2*1.7 in. (440*260*44 mm)
|
|
Performance
|
|
|
BANDWIDTH/BACKPLANE
|
17.6Gbps
|
|
PACKET FORWARDING RATE
|
13.0Mpps
|
|
TRANSFER METHOD
|
Store-and-Forward
|
|
MAC ADDRESS TABLE
|
8k
|
|
BUFFER SIZE
|
7Mb
|
|
Software Features
|
|
|
BASIC FUNCTION
|
MAC Address Auto-Learning and Auto-aging,
Storm Control (Broadcast, Multicast, Unknown unicast),
Port Mirroring
|
|
TRANSMISSION METHOD
|
Store-and-Forward
|
|
PRIORITY
|
Port based Priority,
IEEE 802.1p based Priority: 4 Queues,
IP DSCP based Priority
|
|
LINK AGGREGATION
|
Port Trunking
|
|
VLAN
|
Port Based VLAN,
802.1Q Tag-VLAN,
MTU VLAN
|
|
ACCESS CONTROL LIST
|
Based on Port,
Based on MAC
|
|
SECURITY & AUTHENTICATION
|
Port Security,
Statick MAC Address Binding,
Dynamic MAC Address Binding
|
|
NETWORK MANAGEMENT
|
Web (Http) Management,
Remote Management
|
|
SYSTEM FUNCTION
|
Fixed IP Address Setting,
VCT (visual cable test ),
Port Flow Statistics, TFTP Upgrade
|
|
Others
|
|
|
SAFTY&EMISSION
|
FCC, CE
|
|
PACKAGE CONTENTS
|
Web Smart Switch;
Power Cord; Rackmount KIT; User Guide
|
|
ENVIRONMENT
|
Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
|
