TP-LINK TL-SG3210

TP-LINK TL-SG3210
TP-LINK TL-SG3210
型　號： TL-SG3210
HK$1,138.00
購買數量： 加入購物車
收藏 對比


支援及服務

Bookmark and Share

KNS Shop 購物價惠：
** 部份地區免費送貨
** 電話技術支援安裝
** 保證原庄跟機配件
** 提供七天售後保障 (只限非人為損壞)

KNS承諾所有Switch均屬全新香港行貨 ㊣
並享有原廠保用服務 (條款以代理商提供為準)

*24個月保養期

請即致電 3170 7019 或電郵至 info@knshk.com 查詢及訂購。

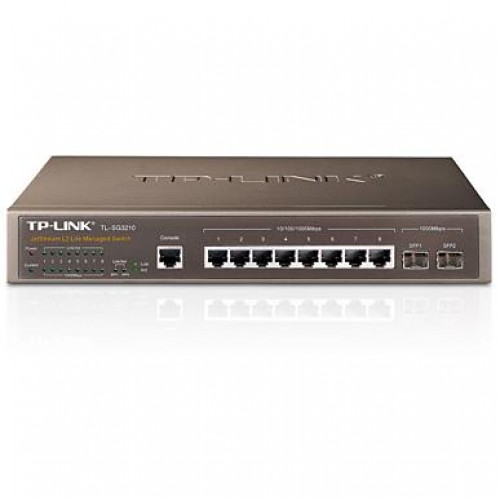

JetStream™ 8-Port Gigabit L2 Lite Managed Switch with 2 SFP Slots
TL-SG3210

Highlights:
•IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you robust security strategies
•L2/L3/L4 QoS and IGMP snooping optimize voice and video application
•WEB/CLI managed modes, SNMP, RMON bring abundant management features

HARDWARE FEATURES
Interface 8 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 1000Mbps SFP Slots
1 Console Port
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
1000BASE-X: MMF, SMF
Dimentions( W x D x H ) 11.7*7.1*1.7in.(294*180*44 mm)
Power Supply 100～240VAC, 50/60Hz
PERFORMANCE
Bandwidth/Backplane 20Gbps
MAC Address Table 8k
Packet Buffer Memory 512KB
Packet Forwarding Rate 1.49Mpps
Jumbo Frame 10240 Bytes
SOFTWARE FEATURES
Quality of Service Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
L2 Features IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
Port isolation
BPDU filtering/guard
TC/Root protect
Loop back detection
802.3x Flow Control
VLAN Support IEEE802.1Q with 4K VLAN groups and 4K VIDs
Port/ MAC/Protocol-based VLAN
GARP/GVRP
Management VLAN configuration
Access Control List L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID;
Time Range Based
Security IP-MAC-Port-VID Binding
IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN
DoS Defence
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
Management Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client,DHCP Snooping,DHCP Option82
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
OTHERS
Safty & Emission CE, FCC
Package Contents Switch; Power Cord; Quick Installation Guide;Resource CD; Rackmount Kit; Rubber Feet
Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
