TP-LINK TL-SG3424

TP-LINK TL-SG3424
TP-LINK TL-SG3424
型　號： TL-SG3424
HK$2,060.00
購買數量： 加入購物車
收藏 對比


支援及服務

Bookmark and Share

KNS Shop 購物價惠：
** 部份地區免費送貨
** 電話技術支援安裝
** 保證原庄跟機配件
** 提供七天售後保障 (只限非人為損壞)

KNS承諾所有Switch均屬全新香港行貨 ㊣
並享有原廠保用服務 (條款以代理商提供為準)

*24個月保養期

請即致電 3170 7019 或電郵至 info@knshk.com 查詢及訂購。

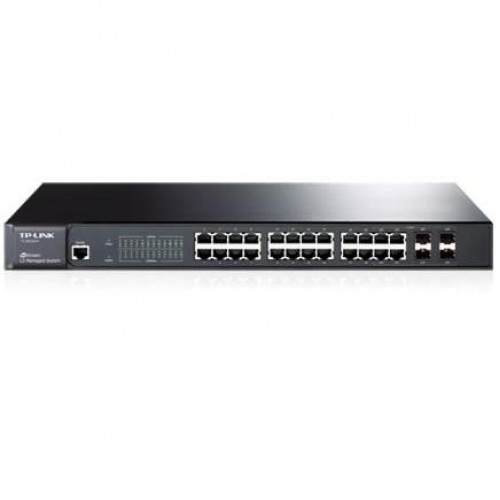

JetStream™ 24-Port Gigabit L2 Lite Managed Switch
with 4 Combo SFP Slots
TL-SG3424

Highlights:
•IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you robust security strategies
•L2/L3/L4 QoS and IGMP snooping optimize voice and video application
•WEB/CLI managed modes, SNMP, RMON bring abundant management features

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,IEEE 802.3ad,
IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q,
IEEE 802.1x,IEEE 802.1p
Interface 24 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 Combo 100/1000Mbps SFP Slots*
1 Console Port
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
100BASE-FX:MMF,SMF
1000BASE-X: MMF, SMF
Dimentions( W x D x H ) 17.32*8.7*1.73 in.(440*220*44 mm)
Power Supply 100~240VAC, 50/60Hz
PERFORMANCE
Bandwidth/Backplane 48Gbps
MAC Address Table 8k
Packet Forwarding Rate 35.7Mpps
Jumbo Frame 10240 Bytes
SOFTWARE FEATURES
Quality of Service Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
L2 Features IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
VLAN Support IEEE802.1Q with 4K VLAN groups and 4K VIDs
Port/ MAC/Protocol-based VLAN
GARP/GVRP
Access Control List L2～L4 package filtering based on source and destination MAC address,
IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
Time Range Based
Security IP-MAC-Port-VID Binding
IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN
DoS Defence
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
Management Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client,DHCP Snooping,DHCP Option82
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
OTHERS
Certification CE, FCC
Package Contents Switch;
Power Cord;
Quick Installation Guide;
Resource CD;
Rackmount Kit;
Rubber Feet
Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
