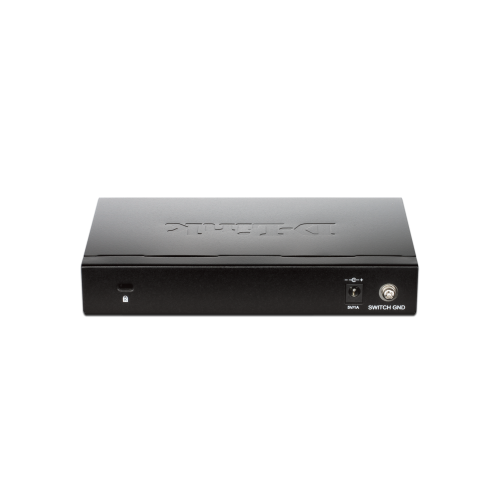

D-Link DGS-1100-08 8埠10/100/1000Mbps EasySmart交換器

Technical Specifications

General

Port Standard & Functions
• IEEE 802.3 compliant
• IEEE 802.3u compliant
• IEEE 802.3ab compliance
• Supports Half/Full-duplex operation at 10/100Mbps
• Supports Full-duplex operation at 1000Mbps
• Supports Auto-Negotiation for each port
• Auto MDI/MDIX
• IEEE 802.3x Flow Control support
• IEEE 802.3az compliant

Number of Ports
• 5 (DGS-1100-05)
• 8 (DGS-1100-08 & DGS-1100-08P)
• 16 (DGS-1100-16)
• 24 (DGS-1100-24)

Performance Switching Capacity
• 10Gbps (DGS-1100-05)
• 16Gbps (DGS-1100-08 & DGS-1100-08P)
• 32Gbps (DGS-1100-16)
• 48Gbps (DGS-1100-24)

Max. Forwarding Rate
• 7.44 Mpps  (DGS-1100-05)
• 11.9 Mpps (DGS-1100-08 & DGS-1100-08P)
• 23.81 Mpps (DGS-1100-16)
• 35.71 Mpps (DGS-1100-24)

MAC Address Table Size
• 8K Entries

Packet Buffer
• 1Mbits (DGS-1100-05)
• 2Mbits (DGS-1100-08 & DGS-1100-08P)
• 3.5Mbits (DGS-1100-16 & DGS-1100-24)

Forwarding Mode
• Store and Forward

Physical & Environmental

Power Input
• 100 to 240 VAC, 50 to 60 Hz
   • External Universal Power Supply (DGS-1100-05, DGS-1100-08, DGS-1100-08P)
• 100 to 240 VAC, 50 to 60 Hz
   • Internal Universal Power Supply (DGS-1100-16 & DGS-1100-24)

Max. Power Consumption
• 3.35 Watts (DGS-1100-05)
• 4.89 Watts (DGS-1100-08)
• 7.88 Watts (DGS-1100-08P)
• 11.29 Watts (DGS-1100-16)
• 14.83 Watts (DGS-1100-24)

Standy Power Consumption
• 0.99 Watts (DGS-1100-05)
• 1.23 Watts (DGS-1100-08)
• 2.00 Watts (DGS-1100-08P)
• 5.64 Watts (DGS-1100-16)
• 6.49 Watts (DGS-1100-24)

Fan Quantity
• Fanless

Acoustics
• 0 dBA

Heat Dissipation
• 11.43 BTU/hr  (DGS-1100-05)
• 16.68 BTU/hr (DGS-1100-08)
• 268.87 BTU/hr (DGS-1100-08P)
• 38.52 BTU/hr (DGS-1100-16)
• 50.60 BTU/hr (DGS-1100-24)

Operating Temperature
• 32 to 104 °F (0 to 40 °C) (DGS-1100-05)
• 32 to 104 °F (0 to 40 °C) (DGS-1100-08)
• 32 to 104 °F (0 to 40 °C) (DGS-1100-08P)
• 32 to 104 °F (0 to 40 °C) (DGS-1100-16)
• 32 to 104 °F (0 to 40 °C) (DGS-1100-24)

Storage Temperature
• 14 to 158 °F (-10 to 70 °C)

Operating Humidity
• 10% to 95% non-condensing

Storage Humidity
• 5% to 95% non-condensing

Dimensions (W x D x H)
• 5.55” x 3.35” x 1.1” (141mm x 85mm x 28mm) (DGS-1100-05)
• 6.73” x 3.86” x 1.1”(171mm x 98 mm x 28mm) (DGS-1100-08)
• 7.4” x 4.7” x 1.5” (190mmx120mmx38mm) (DGS-1100-08P)
• 11” x 7.1” x 1.73” (280mm x 180mm x 44 mm) 11-inch Desktop/Rackmount Size, 1U Height (DGS-1100-16 & DGS-1100-24)

Weight
• 0.7 lbs (0.32kg) (DGS-1100-05)
• 0.93 lbs (0.42kg) (DGS-1100-08)
• 1.6lbs (0.71kg) (DGS-1100-08P)
• 3.3 lbs (1.5kg) (DGS-1100-16)
• 3.5 lbs (1.6kg) (DGS-1100-24)

Diagnostic LEDs
• Power (Per Device)
• PoE Max. (DGS-1100-08P Only)
• Link/Activity/Speed (Per Port)

Certifications
• FCC Class A
• CE Class A
• VCCI Class A

Safety
• UL/cUL
• CE LVD
