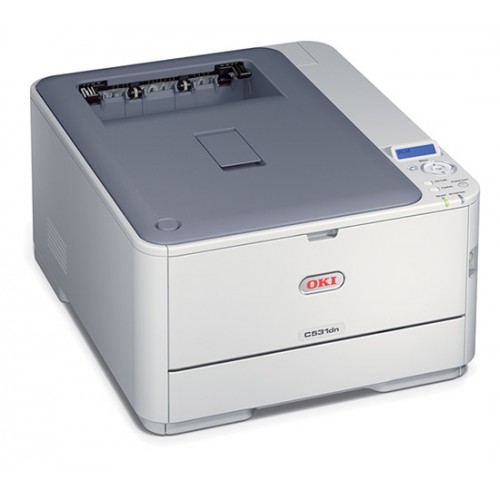

OKI C531dn 彩色印表機

• Print speed A4: 26ppm colour, 30ppm mono
• Time to first print (TTFP) 8 seconds colour, 7.5 seconds mono
• Warm up time Up to 60 seconds from power on & up to 32 seconds from power save
• Processor speed 532MHz

Interface and Software

• Connectivity USB 2.0 High Speed, 10/100 TX Ethernet
• Printer language PCL6 (XL3.0 & PCL5c) PostScript 3 emulation, SIDM (IBM-PPR, EPSON-FX)
• Network & protocols All major network protocols supported via ethernet card with internal web server for printer and network card set-up and management. TCP/IP: ARP, IPv4/v6, ICMPv4/v6, TCP, UDP, LPR, FTP, TELNET, HTTP(IPP), BOOTP, DHCP, SNMPv1/v3, DNS, DDNS, UPnP, Bonjour, WINS, SSL/TLS, SMTP, POP3, SNTP, WSDPrint, LLTD, JetDirect protocols, NetBIOSoverTCP; NetWare3.x, 4.x, 5.x and 6 with full NDS and NDPS support:- PServer, RPrinter, NDPS supported via dedicated OKI NDPS Gateway; AppleTalk: ELAP, AARP, DDP, AEP, NBP, ZIP, RTMP, ATP, PAP; NetBEUI: SMB, NetBIOS; Other: EAP
• OS Compatibility Windows 2000 / XP Home / XP Professional (32-bit & 64-bit) / Server 2003 (32-bit & 64-bit) / Server 2008 (32-bit & 64-bit) / Server 2008 R2 (64-bit) / Vista (32-bit & 64-bit) / Windows 7 (32-bit & 64-bit); Mac OS X 10.3.9 to 10.7
• Advanced networking and security IPv6, 802.1x authentication, SNMPv3, SSL/TLS, HTTPS encrpytion, MAC filtering, IP filtering, IPSec
• Utility suite Template Manager, Color Correct, OKI LPR, Color Swatch Utility, PrintSuperVision.net, PrintSuperVision Multiplatform, Print Job Accounting Server, Print Job Accounting Client, Web Driver Installer, Network Card Setup, Configuration Tool, ICC Color Profiles, PS Gamma Adjuster, Profile Assistant, PDF Direct Print

Print quality

• Resolution ProQ2400 Multi-level Technology, 1200x600dpi, 600x600dpi
• Enhancements Auto Color Balance, Photo Enhance via driver

Paper Handling

• Paper capacity Tray 1: 250 sheets of 80gsm; Multi-purpose tray: 100 sheets of 80gsm
• Paper capacity optional tray Tray 2: 530 sheets of 80gsm
• Maximum paper capacity 880 sheets of 80gsm
• Paper sizes Tray 1: A4, A5, B5, A6; Tray 2: A4, A5, B5; Multi-purpose tray: A4, A5, B5, A6, Envelopes (C5, DL, Com-9, Com-10, Monarch), Index Card (3" x 5") (75 x 125mm), Photo Size (4" x 6", 5" x 7")(100 x 150mm, 125 x 175mm), Custom Size (up to 1200mm length including banners); Duplex: A4, A5, B5
• Paper weight Tray 1/2: 64 to 176gsm; Multi-purpose tray: 64 to 220gsm; Duplex: 64 to 176gsm
• Duplex Standard
• Paper output Face Down: 150 sheets of 80gsm; Face Up: 100 sheets of 80gsm

General Features

• Memory (RAM) Standard: 256MB; Maximum: 768MB
• Operating temperature/ humidity 10°C to 32°C (17°C to 27°C recommended) / 20% to 80% RH (50% to 70% RH recommended)
• Storage temperature/ humidity -10°C to 43°C, 10% to 90% RH
• Power supply Single phase 220-240VAC, frequency 50/60Hz +/-2%
• Power consumption Typical: 540W; Max: 1170W; Idle: 90W; Power Save: <14W; Deep Sleep: <1.5W; Auto-Off: <0.5W
• Noise level Operating: <54dB(A); Standby: 37dB(A); Power save: Inaudible
• Dimensions (HxWxD) 242 x 410 x 504mm
• Weight 22kg
• Duty cycle (Maximum) 60,000 pages/month
• Duty cycle (Recommended) Up to 5,000 pages/month
