| DISPLAY |
- Panel Size
- 23.8-inch
- Screen Dimensions
- 531.73 mm x 340.80 mm
- Panel Type
- 3-side NearEdgeless, VA
- Active Area
- 527.04 mm x 296.46 mm
- Backlight
- WLED
- Aspect ratio
- 16:09:00
- Resolution
- 1920 x 1080
- Pixel Pitch
- 0.2745 x 0.2745 mm
- Dot/Pixel Per Inch (DPI/PPI)
- 93
- Viewing angle (H x V @ CR 10:1)
- 178 ° / 178 °
- Response Time
- 4ms (Extreme Mode)
6ms (normal mode)
- Refresh Rate
- 60 Hz
- Brightness (typical)
- 250 cd/m2
- Contrast Ratio (typical)
- 3000:1
- Dynamic Contrast Ratio (typical)
- 3M:1
- Colour Gamut NTSC (CIE 1931)
- 99% sRGB, 99% BT.709, 85% DCI-P3
- Color Gamut
- 72% NTSC (CIE 1931)
- Color Support (typical)
- 16.7 Million
- Anti-Glare
- Yes
|
| CONNECTIVITY |
- Video Signal
- 1 x HDMI 1.4
1 x VGA
- Audio Signal
- 1 x Audio Out (3.5 mm)
|
| MULTI-MEDIA |
- Optional Soundbar Support
- Yes (PN number: 0A36190)
|
| SPECIAL FEATURES |
- Sync Technology
- AMD FreeSync™
|
| POWER |
- Power Consumption (typ./max)
- 17.5W / 23.5W
- Power Consumption Sleep/Off Mode
- < 0.5W
- Power Consumption Switch-off Mode
- < 0.5W
- ENERGY STAR Power Consumption(Pon/ETEC)
- 12W / 36 kWh
- Power Supply
- Internal
- Voltage Required
- AC 100 to 240V (50— 60 Hz)
|
| MECHANICAL |
- Tilt Angle (front/back)
- -5 ° /22 °
- Swivel Angle (left/right)
- +45/-45 °
- VESA Mount Capability
- Yes (100 X 100 mm)
- ThinkCentre M Series Tiny Support
- Yes, by Tiny VESA mount II
(PN: 4XF0N03161)
- ThinkCentre M Series Nano Support
- Yes, by Nano VESA mount
(PN: 4XF0V81630)
- Kensington Lock Slot
- Yes
- Cable Management
- Yes
- Bezel Color
- Raven Black
- Bezel Width (side)
- 2.5 mm
- Bezel Width (top/bottom)
- 2.5 / 22.4 mm
|
| DIMENSION |
- Size Packed (D x H x W, mm/inch)
- 624.0 x 124.0 x 415.0 mm
24.57 x 4.88 x 16.34 inches
- Size Unpacked w/ Stand (D x H x W, mm/inch)(lowest position)
- 173.1 x 434.5 x 540.4 mm
6.81 x 17.10 x 21.28 inches
- Size Unpacked w/ Stand(D x H x W, mm/inch)(highest position))
- 173.1 x 434.5 x 540.4 mm
6.81 x 17.10 x 21.28 inches
- Size Unpacked w/o Stand(head only) (D x H x W, mm/inch)
- 45.5 x 327.2 x 540.4 mm
1.79 x 12.88 x 21.28 inches
- Weight Packed(kg/lbs.)
- 5.42 kg / 11.95 lbs.
- Weight Unpacked (kg/lbs.)
- 3.82 kg / 8.42 lbs.
- Weight (monitor head only) (kg/lbs.)
- 3.02 kg / 6.66 lbs.
|
| WHAT’S IN THE BOX |
- Monitor with stand
1 x Power cable (1.8 m)
1 x HDMI cable (1.8 m)
Quick setup guide
|
| CERTIFICATIONS |
- ENERGY STAR Certification
- Yes
- CCC
- Yes
- TCO
- 8.0
- TCO Edge
- 2.0
- RoHS (EU 2002/95/EC)
- Yes
- EPEAT
- Gold
- Windows Certification
- Windows 7, Windows 10
- China Energy Efficiency Standard
- Tier 1
- TÜV Rheinland Eye Comfort
- Yes
|

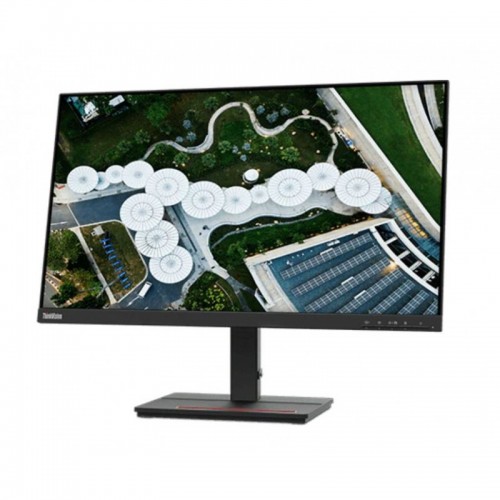

![Lenovo ThinkVision S24e-20, 23.8" Borderless VA Display [62AEKAR2WW]](https://www.knshk.com/image/cache/data/商品相/Lenovo ThinkVision S24e-20, 23.8 Borderless VA Display [62AEKAR2WW]-500x500.jpg "Lenovo ThinkVision S24e-20, 23.8\" Borderless VA Display [62AEKAR2WW]")
