QNAP Enterprise NAS TS-ECx80U Series [P/N: TS-EC2480U-RP/ TS-EC1680U-RP/ TS-EC1280U-RP/ TS-EC880U-RP]

QNAP Enterprise NAS TS-ECx80U Series [P/N: TS-EC2480U-RP/ TS-EC1680U-RP/ TS-EC1280U-RP/ TS-EC880U-RP]
QNAP Enterprise NAS TS-ECx80U Series [P/N: TS-EC2480U-RP/ TS-EC1680U-RP/ TS-EC1280U-RP/ TS-EC880U-RP]
型　號： TS-ECx80U Se
HK$57,000.00
購買數量： 加入購物車
收藏 對比


支援及服務

  KNS Shop 購物價惠：
** 部份地區免費送貨
** 電話技術支援安裝
** 保證原庄跟機配件
** 提供七天售後保障 (只限非人為損壞)

KNS承諾所有NAS均屬全新香港行貨 ㊣
並享有原廠保用服務 (條款以代理商提供為準)

請即致電 3170 7019 或電郵至 info@knshk.com 查詢及訂購。



 TS-ECx80U Series
Powerful NAS with Intel® Xeon® Quad-Core CPU for Breakthrough Performance



    • 10GbE-ready, over 3,500 MB/s throughput and 390,000 IOPS breakthrough performance
    • SSD caching beneficial to IOPS demanding applications
    • Scalable design, over 816TB raw capacity





TS-EC2480U-RP

$60600

TS-EC1680U-RP

$48200

TS-EC1280U-RP

$41700

TS-EC880U-RP

$33500
OS Embedded Linux Embedded Linux Embedded Linux Embedded Linux
CPU Intel® Xeon® E3-1200 v3 Family 3.4 GHz Quad Core Processor Intel® Xeon® E3-1200 v3 Family 3.4 GHz Quad Core Processor Intel® Xeon® E3-1200 v3 Family 3.4 GHz Quad Core Processor Intel® Xeon® E3-1200 v3 Family 3.4 GHz Quad Core Processor
Memory (RAM) 4 GB DDR3 ECC RAM 4 GB DDR3 ECC RAM 4 GB DDR3 ECC RAM 4 GB DDR3 ECC RAM
Flash 512MB (DOM for dual OS) 512MB (DOM for dual OS) 512MB (DOM for dual OS) 512MB (DOM for dual OS)
Number of RAM Slots 4 (Max 32 GB) 4 (Max 32 GB) 4 (Max 32 GB) 4 (Max 32 GB)
Max. number of HDDs/SSDs 24x 2.5" or 3.5" SATA 6Gb/s, 3Gb/s 16x 2.5" or 3.5" SATA 6Gb/s, 3Gb/s 12x 2.5" or 3.5" SATA 6Gb/s, 3Gb/s 8x 2.5" or 3.5" SATA 6Gb/s, 3Gb/s
Hot-Swappable HDD Tray Yes, Lockable Yes, Lockable Yes, Lockable Yes, Lockable
Expansion Enclosure Support 8 (REXP units) 8 (REXP units) 8 (REXP units) 8 (REXP units)
Internal Cache Port 2 (mSATA flash module is optional) 2 (mSATA flash module is optional) 2 (mSATA flash module is optional) 2 (mSATA flash module is optional)
Gigabit LAN Ports 4 (Expandable up to: 8 x Gigabit LAN or 4 x 10 Gigabit + 4 x Gigabit LAN) 4 (Expandable up to: 8 x Gigabit LAN or 4 x 10 Gigabit + 4 x Gigabit LAN) 4 (Expandable up to: 8 x Gigabit LAN or 4 x 10 Gigabit + 4 x Gigabit LAN) 4 (Expandable up to: 8 x Gigabit LAN or 4 x 10 Gigabit + 4 x Gigabit LAN)
10GbE Yes (Optional) Yes (Optional) Yes (Optional) Yes (Optional)
Expansion Slot (PCI-E) 2 2 2 2
USB 2.0 4 4 4 4
USB 3.0 4 4 4 4
eSATA - - - -
IR Sensor (Infrared Receiver) - - - -
SD Card Slot - - - -
S/PDIF - - - -
VGA - - - -
HDMI 1 1 1 1
LED Indicators HDD 1-24, Status, 10 GbE, LAN, storage expansion port status HDD 1-16, Status, 10 GbE, LAN, storage expansion port status HDD 1-12, Status, 10 GbE, LAN, storage expansion port status HDD 1-8, Status, 10 GbE, LAN, storage expansion port status
LCD Display/ Button - - - -
Buttons Power, Reset Power, Reset Power, Reset Power, Reset
Form Factor 4U Rack Mount 3U Rack Mount 2U Rack Mount 2U Rack Mount
Dimensions (HxWxD) mm 176.15 x 442.5 x 530.5 130 x 442.5 x 530.5 88 x 442.5 x 530.5 88 x 442.5 x 530.5
Weight (Net/ Gross) 23.08 kg/ 28.56 kg 18.3 kg/ 24.18 kg 14.18 kg/ 21.41 kg 14.39 kg/ 20.54kg
Temperature 0 - 40 °C 0 - 40 °C 0 - 40 °C 0 - 40 °C
Humidity 5 - 95% R.H 5 - 95% R.H 5 - 95% R.H 5 - 95% R.H
Power Supply Specification Redundant/ Hot Swap ATX Power Supply,Input: 50-60 Hz 100-127V~/ 8.5A 200-240V/ 4.2A Output: 650W Redundant/ Hot Swap ATX Power Supply,Input: 50-60 Hz 100-127V~/ 8.5A 200-240V/ 4.2A Output: 650W Redundant/ Hot Swap ATX Power Supply,Input: 47-63 Hz 100-127V~/ 8A 200-240V/ 4A Output: 400W Redundant/ Hot Swap ATX Power Supply,Input: 47-63 Hz 100-127V~/ 8A 200-240V/ 4A Output: 400W

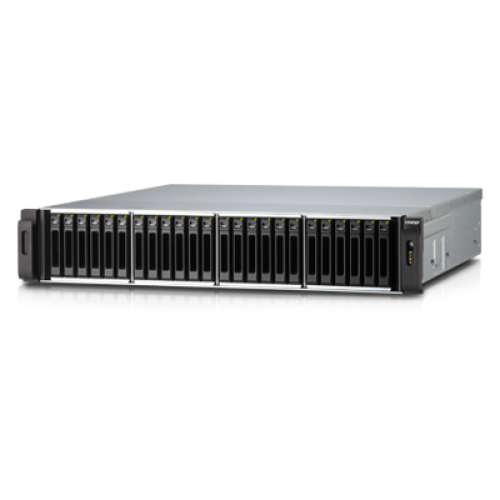

SS-x79U-SAS Series
2.5'' SAS-enabled High-density Turbo NAS with Breakthrough Performance
