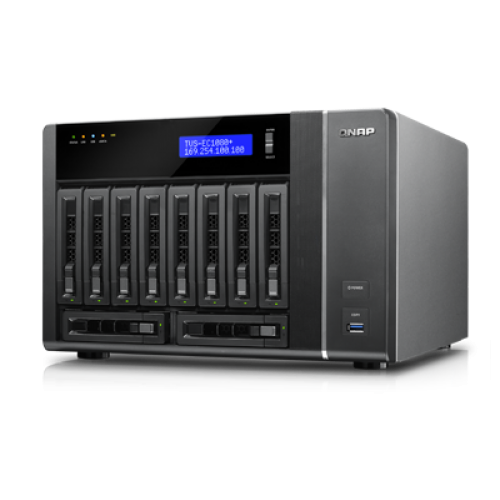

QNAP Edge Cloud NAS TVS-ECx80 Series [P/N: TVS-EC1080+/ TVS-EC1080/ TVS-EC880]

QNAP Edge Cloud NAS TVS-ECx80 Series [P/N: TVS-EC1080+/ TVS-EC1080/ TVS-EC880]
QNAP Edge Cloud NAS TVS-ECx80 Series [P/N: TVS-EC1080+/ TVS-EC1080/ TVS-EC880]
型　號： TVS-ECx80 Se
HK$17,689.00
購買數量： 加入購物車
收藏 對比


支援及服務

  KNS Shop 購物價惠：
** 部份地區免費送貨
** 電話技術支援安裝
** 保證原庄跟機配件
** 提供七天售後保障 (只限非人為損壞)

KNS承諾所有NAS均屬全新香港行貨 ㊣
並享有原廠保用服務 (條款以代理商提供為準)

請即致電 3170 7019 或電郵至 info@knshk.com 查詢及訂購。



 TVS-ECx80 Series
(Non-ECC RAM)

Edge Cloud Turbo vNAS with Intel® Xeon® Quad-core CPU for Breakthrough Performance



    • 10GbE-ready, over 2,000 MB/s throughput and 223,000 IOPS breakthrough performance
    • Two internal mSATA cache ports and up to 4 SSDs for caching
    • Scalable design, over 384TB raw capacity







TVS-EC1080 E3-32G $28878

TVS-EC1080 E3-16G $22388



TVS-EC1080 E3-8G $20888

TVS-EC1080 I3-8G $17898

TVS-EC880 E3-16G $18588

TVS-EC880 E3-8G $17689
OS Embedded Linux Embedded Linux Embedded Linux
CPU Intel® Xeon® E3-1245 v3 3.4 GHz Quad Core Processor or above TVS-EC1080-E3-16G: Intel® Xeon® E3-1245 v3 3.4 GHz Quad Core Processor or above  TVS-EC880-E3-16G: Intel® Xeon® E3-1245 v3 3.4 GHz Quad Core Processor or above
TVS-EC1080-E3-8G: Intel® Xeon® E3-1245 v3 3.4 GHz Quad Core Processor or above  TVS-EC880-E3-8G: Intel® Xeon® E3-1245 v3 3.4 GHz Quad Core Processoror or above
TVS-EC1080-i3-8G: Intel® Core™ i3-4150 3.5 GHz Dual Core Processor or above 　
Memory (RAM) 32 GB DDR3 Non-ECC RAM TVS-EC1080-E3-16G:16 GB DDR3 Non-ECC RAM TVS-EC880-E3-16G:16 GB DDR3 Non-ECC RAM
TVS-EC1080-E3-8G: 8 GB DDR3 Non-ECC RAM  TVS-EC880-E3-8G: 8 GB DDR3 Non-ECC RAM
TVS-EC1080-i3-8G: 8 GB DDR3 Non-ECC RAM 　
Flash 512MB (DOM for dual OS) 512MB (DOM for dual OS) 512MB (DOM for dual OS)
Number of RAM Slots 4 (Max 32 GB) 4 (Max 32 GB) 4 (Max 32 GB)
Max. number of HDDs/SSDs 10x 2.5" or 3.5" SATA 6Gb/s, 3Gb/s 10x 2.5" or 3.5" SATA 6Gb/s, 3Gb/s 8x 2.5" or 3.5" SATA 6Gb/s, 3Gb/s
Hot-Swappable HDD Tray Yes, Lockable Yes, Lockable Yes, Lockable
Expansion Enclosure Support - 4 (REXP units) 4 (REXP units)
Internal Cache Port 2 (build-in 256GB cache) 2 (mSATA flash module is optional) 2 (mSATA flash module is optional)
Gigabit LAN Ports 4 4 (Expandable up to: 6 x Gigabit LAN or 4 x 10 Gigabit + 4 x Gigabit LAN) 4 (Expandable up to: 6 x Gigabit LAN or 4 x 10 Gigabit + 4 x Gigabit LAN)
10GbE Yes (Build-in dual-port 10 GbE LAN) Yes (Optional) Yes (Optional)
Expansion Slot (PCI-E) 1 (occuppied by a dual-port 10 GbE network adapter) 1 1
USB 2.0 6 6 6
USB 3.0 3 3 3
eSATA 2 2 2
IR Sensor (Infrared Receiver) - - -
SD Card Slot - - -
S/PDIF - - -
VGA - - -
HDMI 1 1 1
LED Indicators HDD 1-10, Status, LAN, eSATA, USB, 10 GbE HDD 1-10 Status, LAN, eSATA, USB, 10 GbE HDD 1-8, Status, LAN, eSATA, USB, 10 GbE
LCD Display/ Button Yes Yes Yes
Buttons Power, Reset, USB Auto Copy Power, Reset, USB Auto Copy Power, Reset, USB Auto Copy
Form Factor Tower Tower Tower
Dimensions (HxWxD) mm 217.5 x 327 x 321.2 217.5 x 327 x 321.2 217.5 x 327 x 321.2
Weight (Net/ Gross) 12.52 kg/ 19.75 kg 12.52 kg/ 19.75 kg 12.52 kg/ 19.75 kg
Temperature 0 - 40 °C 0 - 40 °C 0 - 40 °C
Humidity 5 - 95% R.H 5 - 95% R.H 5 - 95% R.H
Power Supply Specification ATX 350W, Input: 110-240 Vac~, 47-63Hz, 5A ATX 350W, Input: 110-240 Vac~, 47-63Hz, 5A ATX 350W, Input: 110-240 Vac~, 47-63Hz, 5A
