DISPLAY
Type
0.45" Digital Micromirror Device (DLP™)
Resolution
WXGA 1280x800 (native)
Lens
Fixed Manual optical zoom/Manual optical focus
Keystone
Auto Vertical keystone correction, +/- 40º
Display size
30" - 100" / 0.76m - 2.54m
Throw Distance
2.9ft - 9.8ft / 0.9m - 3.0m
Throw Ratio
1.4:1
Lamp life (normal/eco-mode)
>20000 hours
Brightness
500 Lumens
Contrast Ratio
6000:1
Aspect Ratio
16:10 (native), 16:9, 4:3, auto
Color Gamut
120% NTSC
Color Depth
1.07B Color (R/G/B 10bit)
INPUT SIGNAL
Computer and Video
NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N), SECAM ( B, D, G, K, K1, L), SD 480i and 576i, ED 480p and 576p, HD 720p, 1080i and 1080p
Frequency
Fh: 31 -100KHz, Fv: 50 -120Hz
COMPATIBILITY
PC
VGA to WSXGA+
Mac®
Up to SXGA+ (scaled)
CONNECTOR
Digital
HDMI 1.3
RGB Input
15-pin mini D- sub
Composite Input
RCA jack
S-Video Input
4-pin mini-DIN
Component
15-pin mini D- sub (shared with RGB)
RGB Output
15-pin mini D-sub
Control
RS-232 (DB-9)
USB
Type A: for PC-Less Presentation support PowerPoint, Word, Excel,PDF, video, photo Mini B: for USB Display, file transfer, firmware update
Audio
Audio Input - 3.5mm mini jack
Card Reader
SDHC up to 32GB (for PC-Less Presentation support PowerPoint, Word, Excel,PDF, video, photo) Memory: 1GB (for media file storage, via Mini-B)
AUDIO
Speakers
2W
POWER
Voltage
100 ~ 240VAC (Auto Switching), 50/60Hz (universal)
Consumption
<120W (typ) / 0.5W (stand-by mode)
CONTROLS
Basic
Power, arrow keys, source, menu
OSD
Picture: Color Mode (Brightest /PC/ Movie/ Picture User)/Wall color (White/ Light yellow/ Light Blue/Pink/ Dark Green) / Brightness/ Contrast / Sharpness/ Saturation/ Hue/ Advanced (Gamma/ BrilliantColor/ Color Temp (low/ Middle/ High) / Color Space (Auto/ RGB/ YUV) Input (HDMI/ VGA/ Composite/ S-video/ AV/ USB display/ Exit) Screen: Aspect Ratio (Auto / 4:3 / 16:9 / 16:10) / Overscan / Digital Zoom / Auto Keystone / V Keystone / Ceil Mount Settings: Language / Location / (front / back) / Menu Position / Signal (Phase / Clock / H. Position / V. Position / Exit) / Mute / Volume / 3D / 3D invert / Advanced (Logo / Close Caption / Security / Exit) / Reset Options: Auto source / Fan Mode (AUTO / High Altitude) / Information Hide / Background Color (Black / Blue) / LED Settings (LED hours used / ECO mode / Clear LED hours / Exit / Information (Model name / Source / Resolution / Software Verison/ Color Space / Aspect ratio) / Advanced (Direct Power On / Auto Power off / Keypad Lock / Exit) / LED calibration
OPERATING CONDITIONS
Temperature
32 F-104 F (0 C-40 C)
Humidity
10%-90% (non-condensing)
Altitude
0~6,000 ft (1,800m), operational up to 10,000 ft (3048m)
NOISE LEVEL
Normal
36 dB
Eco-mode
32 dB
DIMENSIONS (WxHxD)
Physical
8.4" x 1.6" x 6.4" (in) 214 x 42 x 164 (mm)
Packaging
13.9" x 9.8" x 5.5" (in) 353 x 250 x 140 (mm)
WEIGHT
Net
2.6 lb. (1.18kg)
Gross
5.0 lb. (2.26kg)
REGULATIONS
RoHS, REACH, CB, CCC, CE(including C-tick standard), GOST-R, GS, PSB, cULus, FCC-B (including ICES003), UL AR-SMark, NOM
PACKAGE CONTENTS

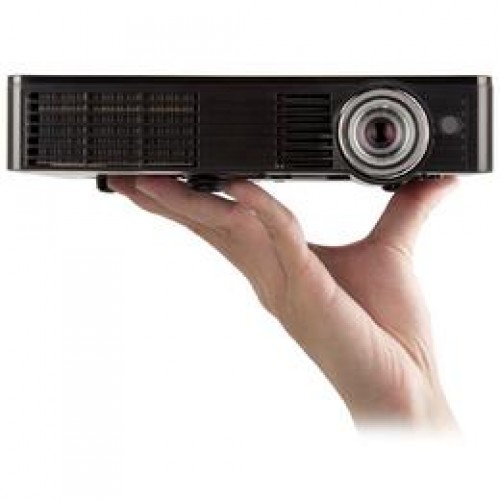

ViewSonic PLED-W500 projector, soft case, power cable, VGA cable, remote control with batteries, Quick Start Guide, ViewSonic Wizard CD (with User Guide)
