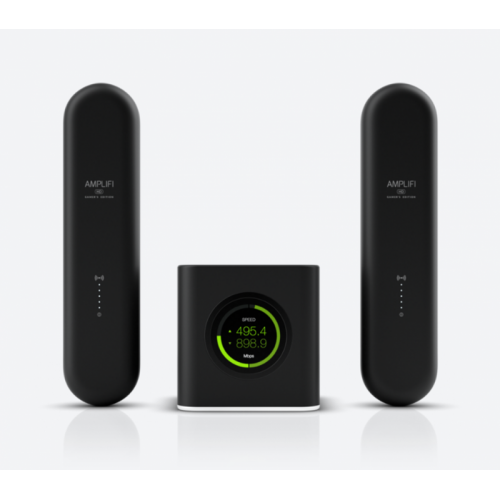

Ubiquiti AmpliFi™ Gamer's Edition Turbocharged 802.11ac Wi-Fi

Ubiquiti AmpliFi™ Gamer's Edition Turbocharged 802.11ac Wi-Fi
Ubiquiti AmpliFi™ Gamer's Edition Turbocharged 802.11ac Wi-Fi
型　號： Ubiquiti AmpliFi™ Gamer's Edition
HK$0.00
購買數量： 加入購物車
收藏 對比


支援及服務



有關詳情請致電 3170-7019查詢。




System Specifications
Max TX Power
26 dBm
Radios
6
MIMO Chains
18
Speed
5.25 Gbps
Range
20,000 sq. ft
Antennas
(3) Dual-Band Antennas
802.11ac
13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80)
802.11n
6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
AmpliFi Specifications
Common Specifications
Dimensions
99.5 x 97.8 x 99.6 mm (3.91 x 3.85 x 3.92")
Weight
410 g (14.46 oz)
Max TX Power
26 dBm
Radios
2
MIMO Chains
6
Speed
1750 Mbps
Networking Interface
Wi-Fi/Gigabit Ethernet (1), WAN, (4) LAN
Maximum Power Consumption
11W
ESD/EMP Protection
± 24kV Air/Contact
Buttons
Reset
Antennas
(1) Dual-Band Antenna, Tri-Polarity
Display
40.6 mm (1.6") Diagonal, 240 x 240, 212 ppi, G+F Touch, Full Color
Wi-Fi Standards
802.11ac
Power Save
Supported
Wireless Security
WPA2-PSK AES/TKIP
Operating Temperature
14 to 131° F (-10 to 55° C)
Operating Humidity
5 to 95% Noncondensing
Certifications
FCC / CE / IC
Supported Data Rates
802.11ac
13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80)
802.11n
6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
MeshPoint Specifications
Common Specifications
Dimensions
243.83 x 54 x 57.75 (9.60 x 2.13 x 2.27")
Weight
224 g (7.90 oz)
Max. TX Power
26 dBm
Radios
2
MIMO Chains
6
Speed
1750 Mbps
ESD/EMP Protection
± 24kV Air/Contact
Buttons
Reset
Antennas
(1) Dual-Band Antenna, Tri-Polarity
Wi-Fi Standards
802.11ac
Power Save
Supported
Wireless Security
WPA2-PSK AES/TKIP
Operating Temperature
14 to 131° F (-10 to 55° C)
Operating Humidity
5 to 95% Noncondensing
Certifications
FCC / CE / IC
Supported Data Rates
802.11ac
13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80)
802.11n
6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
