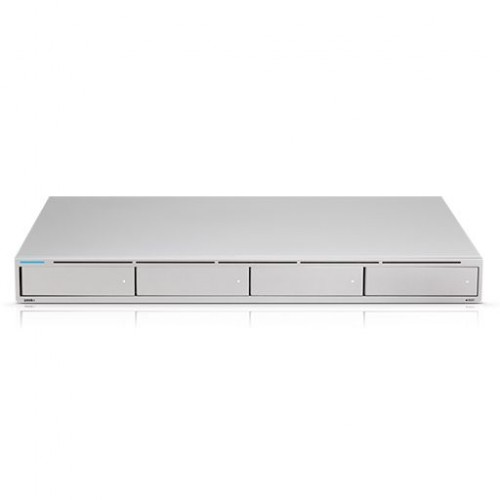

UBIQUITI UniFi Protect Network Video Recorder

Enterprise network video recorder, can provide up to 30 days of 4K video storage for 15 cameras or Full HD video storage for 50 cameras

The UniFi® NVR is an enterprise network video recorder that integrates an NVR, the UniFi Protect software, and a 4-drive bay. UNVR unifies enterprise-class data protection and scalable storage with simple Plug and Play integration using the intuitive UniFi Protect software. From a desktop computer or mobile device, you can access your surveillance recordings from virtually anywhere using the intuitive graphical user interface. The mobile app is available for iOS and Android-based devices. The drive bays are easily accessed from the front panel, so hard drive mounting and maintenance are simple. Using four 8 TB drives in a RAID 5 configuration, the UNVR can provide up to 30 days of 4k video storage for 15 cameras or Full HD video storage for 50 cameras.

Features:

• • (4) 2.5"/3.5" Drive bays
  • (1) 10G SFP+ port
  • (1) Gigabit RJ45 port
  • 1U rackmountable (kit included)
  • Plug and Play UniFi Protect system with NVR
  • Automated secure RAID 1 or RAID 5 configuration
  • Supports USP-RPS for PSU failover
  • PRODUCT SPECIFICATIONS

    UNVR
    Dimensions	442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")
    Weight Without Rackmount Brackets With Rackmount Brackets	5.11 kg (11.27 lb) 5.20 kg (11.46 lb)
    Enclosure Characteristics	SGCC Steel
    Processor	Quad-Core ARM Cortex-A57 at 1.7 GHz
    System Memory	4 GB DDR4
    On-Board Flash Storage	SPI NOR 32 MB, USB Flash 8 GB
    Max. Power Consumption	100W
    Max. Power Budget for Drives	75W
    Power Method	(1) Universal AC Input (1) RPS DC Input
    Power Supply	100-240VAC, 50/60 Hz, 2A
    Networking Interfaces	(1) 10/100/1000 Mbps RJ45 Ethernet (1) 1/10 Gbps SFP+ Ethernet
    Management Interface	Ethernet In-Band Management
    ESD/EMP Protection	Air: ± 12kV, Contact: ± 8kV
    Operating Temperature	-5 to 40° C (23 to 104° F)
    Operating Humidity	5 - 95% Noncondensing
    LEDs System Ethernet SFP+ White SFP+ HDD	(1) Power, Blue/White Flashing White: Bootup in Progress Flashing Blue: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted Green: 1000 Mbps, Amber: 10/100 Mbps White: 10 Gbps, Green: 1 Gbps Amber: Disk Error, White: Disk Detected

  •
    • Works with UniFi Protect Software

    • Add 50 cameras to your system to cover every angle
    • Free remote access for streaming and viewing your recordings
    • Your video is stored on your own secure hardware, not a cloud server

      Note: stackable support for multiplying capacity is coming soon
