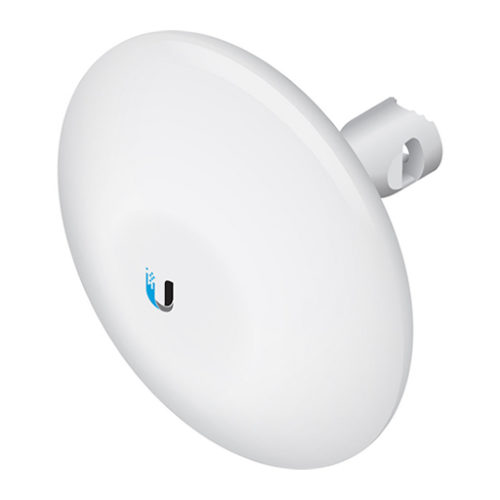

UBIQUITI airMax CPE - NanoBeam AC [NBE‑5AC‑Gen2]

UBIQUITI airMax CPE - NanoBeam AC [NBE‑5AC‑Gen2]
型 號: NBE‑5AC‑Gen2
HK$0.00
購買數量: 加入購物車

High-Performance airMAX® ac Bridge

Incorporating innovative industrial design with proprietary airMAX® ac technology, the NanoBeam® AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.

Models: NBE‑5AC‑Gen2



Management Wi-Fi Radio

The NanoBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.





Improved Surge Protection

The NanoBeam® AC features enhanced protection against ESD events.

Superior Processing

Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna “Beam” Performance

The form factor of the NanoBeam® AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.

Performance Breakthrough

airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Advanced Software Technology

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Plug and Play Installation

The NanoBeam® AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.

Now with airOS®8

airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Model Comparison


NBE-M5-16
NBE-M5-19
NBE-2AC-13
NBE-5AC-Gen2
Frequency 5 GHz 5 GHz 2.4 GHz 5 Ghz
Throughput 150+ Mbps 150+ Mbps 330+ Mbps 450+ Mbps
Range 10+ km 15+ km 15+ km 15+ km
Improved Wide Bandwidth Antenna
Management Radio
