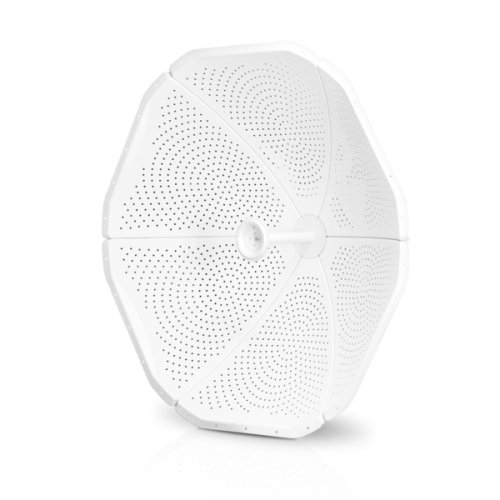

UBIQUITI airMax ANTENNAS - MonsterDish™ Antenna [MD-5G37]

UBIQUITI airMax ANTENNAS - MonsterDish™ Antenna [MD-5G37]
型 號: MD-5G37
HK$0.00
購買數量: 加入購物車

airFiber 5GHz, 37 dBi
SKU:  MD-5G37

The MonsterDish™ is a 5 GHz, 37 dBi antenna that is ideal for Point-to-Point (PtP) links of 100+ km. Its all-aluminum design enhances reliability and features a precision alignment mount. The MonsterDish is compatible with a 5 GHz Rocket® or airFiber® radio. It can be shipped using standard DHL, FedEx, or UPS shipping due to its compact size when disassembled for transport.

Dimensions:

Shipped: 40.35 x 34.8 x 20.5"
Assembled: 60 x 60 x 32"






MECHANICAL
Dimensions Ø1600 x 820 mm (Ø62.9 x 32.2")
Weight Without Mount: 19 kg (41.9 lb)
With Mount: 40.9 kg (90.2 lb)
Enclosure Material Aluminum/UV Stabilized Polycarbonate
Mount Material Aluminum/UV Stabilized Polycarbonate
Mount Material Aluminum Sheet Metal/Steel Hardware with Geomet Coating
Mounting Pole Mount (Kits Included
Caution! Pole or structure that the antenna mounts to should ensure support of the 40.9 kg (90.2 lb) weight and windload.
RF
Frequency Range 4.9 to 5.8 GHz
Antenna Gain
4.9 GHz
5.2-5.8 Ghz

34 dBi
35-37 dBi
HPOL Beamwidth 2.5° (3 dB)
VPOL Beamwidth 2.5° (3 dB)
Elevation Beamwidth 2.5° (3 dB)
Electrical Downtilt
Maximum VSWR 1.7:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 6385 N @ 200 km/h (1435 lbf @ 125 mph)
Polarization Dual-Linear (Slant 45 with Adaptor)
