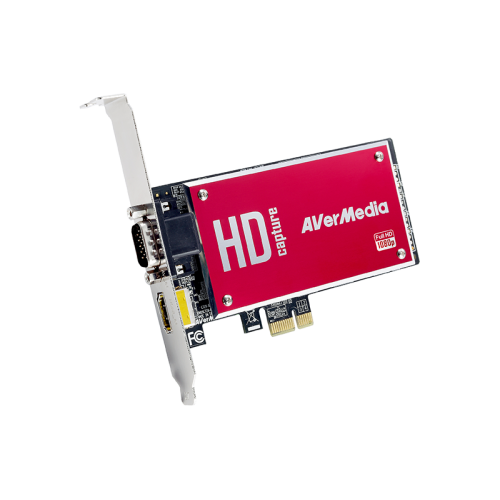

AVerMedia HD Capture SDK II C729

AVerMedia HD Capture SDK II C729
型 號: SKU-12622
HK$3,080.00
購買數量: 加入購物車

KNS Shop 購物價惠:
** 貨到付款
** 免費送貨
** 電話技術支援安裝
** 保證原庄跟機耗材及配件
** 提供七天售後保障 (只限非人為損壞)

 優惠浪接浪 ♥

► 送 EVERLAST 1個月任玩通行證

✮優惠期至2016年5月31日✮

KNS承諾所有打印機均屬全新香港行貨 ㊣
並享有原廠保用服務 (條款以代理商提供為準)

請即致電 3170 7019 或電郵至 info@knshk.com 查詢及訂購。



AVerMedia HD Capture SDK II C729

Interface PCIe 1x
Input Digital: HDMI 1.3 / HDCP 1.2 (1080p@25/30)
Analog (through breakout cable): Component (YPbPr support 1080i / 720p) / Composite / S-Video / Audio (L/R)
Input Video Resolution Composite & S-Video:
720 x 480@60i, 720 x 576@50i
Component:
720x480@60i/60p, 720x576@50i/50p, 1280x720@50p/60p, 1920x1080@50i/60i
HDMI:
640x480@60/72/75/85 / 720x480@60i/60p / 720x576@50i/50p / 800x600@56/60/72/75/85 / 1024x768@60/70/75/85 / 1152x864@75 /
1280 x 720@50p/60p, 1280 x 768@60, 1280 x 800@60, 1280 x 960@60, 1360 x 768@60, 1280 x 1024@50, 1440 x 900@50, 1600 x 1200@30
1680x1050@35 / 1920x1080@50i/60i / 1920x1080@24/25/30
Capture Video format Composite & S-Video:
720 x 480, 720 x 576
Component:
640 x 480, 720 x 480, 720 x 576, 1280 x 720, 1920 x 1080
HDMI:
640 x 480, 720 x 480, 720 x 576, 800 x 600, 1024 x 768, 1152 x 864, 1280 x 720, 1280 x 768, 1280 x 800
1280x960 / 1360x768 / 1280x1024 / 1440x900 / 1600x1200 / 1680x1050 / 1920x1080
Pixel Format YUY2(4:2:2), YVYU(4:2:2), UYVY(4:2:2)
Color Adjustment Composite & S-Video: Brightness, Contrast, Hue (NTSC only), Saturation
Component: Brightness, Contrast
HDMI: Not supported
Video Format NTSC / PAL
Multi-Card Support Yes (max = 8 pcs)
OS Windows XP / 7/ 8
Linux
Programming Language VB, VC, Delphi, C#, VB.NET
SDK Framework General DLL
Operating Environment [Temperature] 0 to +60 ℃
[Humidity] 0% to 80% RHNC
Storage Environment [Temperature] -30 to +65 ℃
[Humidity] 0% to 90% RHNC
Power Requirement 3.3V max 710mA
Dimensions (mm) 124.8(L) x 68.78(W) x 1.6(H)
System Requirements
CPU For SD Video Capturing
-Intel® Pentium® 4 3.0GHz
-AMD Athlon™ 64 3200+
For HD Video Capturing (MPEG-2 Format)
-Intel® Core™ 2 Duo 2.4GHz
-AMD Athlon™ 64x2 Dual Core 2.8GHz
For HD Video Capturing (H.264 Format)
-Intel® Core™ i5 750 or AMD equivalent
For 3D Content Capturing
-Intel® Core™ 2 Duo or AMD AMD Athlon x2 or above
Memory 512 MB RAM
* 2GB RAM is recommended for HD video capturing
VGA VGA card with DirectX9.0c or above
* VGA card with support for DirectX9.0c or above*
Operating System Windows® 8/7/XP (32/64-Bit)
Linux
3rd Party S/W Support • Telestream Wirecast
• Adobe Flash Media Live Encoder 3
• Adobe Premiere Pro CS
• UStream Producer
• XSplit
• Microsoft Windows Media Encoder 9
• Microsoft Express Encoder
• GraphEdit
• AMCap
• Corel VideoStudio
• CyberLink PowerDirector
• CyberLink PowerProducer
• Real Producer (v13)
• VLC Media Player
• Imaging J
• Sony Vegas Pro 10
• Learning Valley - Presentations2GO
• Any application which requires a DirectShow compliant device
