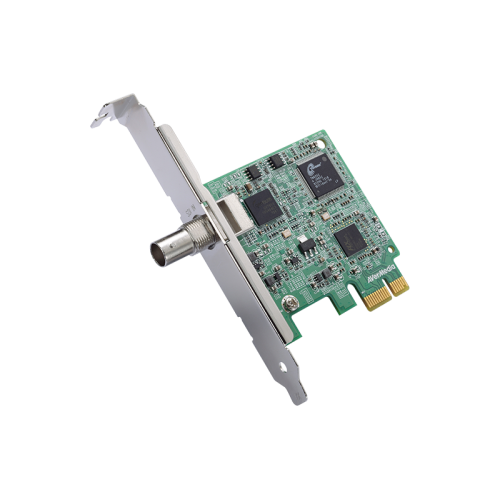

AVerMedia HD-SDI CD110
Video Input
HD-SDI/SD-SDI (BNC)
Audio Input
Embedded SDI Audio
(2-ch Embedded Audio per SDI input)
Video Resolution[1]
HD-SDI:
1280 x 720@50p/59.94p/60p
1920 x 1080@50i/60i/23.98p/24p/25p/
29.97p/30p/25PsF/29.97PsF/30PsF
SD-SDI:
720 x 480@60i
720 x 576@50i
Pixel Format
YUY2(4:2:2), YVYU(4:2:2), UYVY(4:2:2)
SDI Color Precision
Input: 10-bit, Output: 8-bit
Audio Sampling
48KHz at 24-bit
PC Interface
PCIe Gen 1
Operating Environment
Temperature: 0 to +70°C
Humidity: 10 to 90% RHNC
Storage Environment
Temperature: -30 to +85°C
Humidity: 10 to 90% RHNC
Dimensions (mm)
70(L) x 68.78(W) x 14.4(H)
Power Requirement
3.3V max 1400mA
SDI Cable Length (1694A)
HD: 200M, SD: 350m (Typical)
[1] The resolution of the output signal must be either the same as the input signal or downscaled to match SD resolution (lower than 720 x 576).
SSD is required for AVI format recording
- Read: 200MB/s (or above)
- Write: 200MB/s (or above)
- System AHCI function (activation required)
- SATA III interface on motherboard is required
- Dual core CPU (with main processor of frequency 3.40GHz or above) plus memory of dual channel architecture
